V1202-CT-T

V1202-CT-T

V1200 Series
Arm-based compact rail computer with 2 GbE ports, 1 USB port, 1 microSD slot, 24 to 110 VDC, -40 to 70°C operating temperature, conformal coating
Image of V1202-CT-T
Free Ground Shipping on U.S. Orders over $99 $1,070.04 ON BACKORDER Estimated Availability: 08/17/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-v1200-series-datasheet-v1.0.pdf
  • Arm Cortex-A53 quad-core 1.6 GHz processor
  • Slim, compact design with multiple mounting options
  • Integrated 5G Sub-6GHz NR module and Wi-Fi 6 module with dual SIM
  • Built-in TPM 2.0 module
  • Moxa Industrial Linux built-in for long-term Linux support
  • Isolated power with 24 to 110 VDC power supply range
  • Complies with all EN 50155 mandatory test items This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here: www.moxa.com/doc/specs/EN_50155_Compliance.pdf
  • Compliance with IEC 62443-4-2 Security Level 2 requirements
View More
Overview Specifications Accessories

Introduction

The V1200 computing platform is designed for railwayTCMS data-acquisition and train-to-ground applications. The computercomes with dual M12 10/100/1000 Mbps Ethernet ports, built-in 5G andWi-Fi 6 modules and dual RS-232/422/485 serial ports. The slim, compactdesign with multiple mounting options reduces installation space andprovides flexibility for mounting in various cabinets or onboard locations.

TheV1200 comes with Moxa Industrial Linux (MIL) and long-term Linux supportand vulnerability patching. A web-based interface is provided foreasy configuration of Ethernet and wireless network settings withoutthe need for programming.

The V1200 wireless-enabled models are thoroughly tested in a testingchamber, guaranteeing they meet the EN 50155 mandatory requirementsand OT4 operating temperature (-40 to 70°C with cellular and Wi- Fimodules enabled) requirements, making them suitable for wide-temperatureapplications.

Appearance

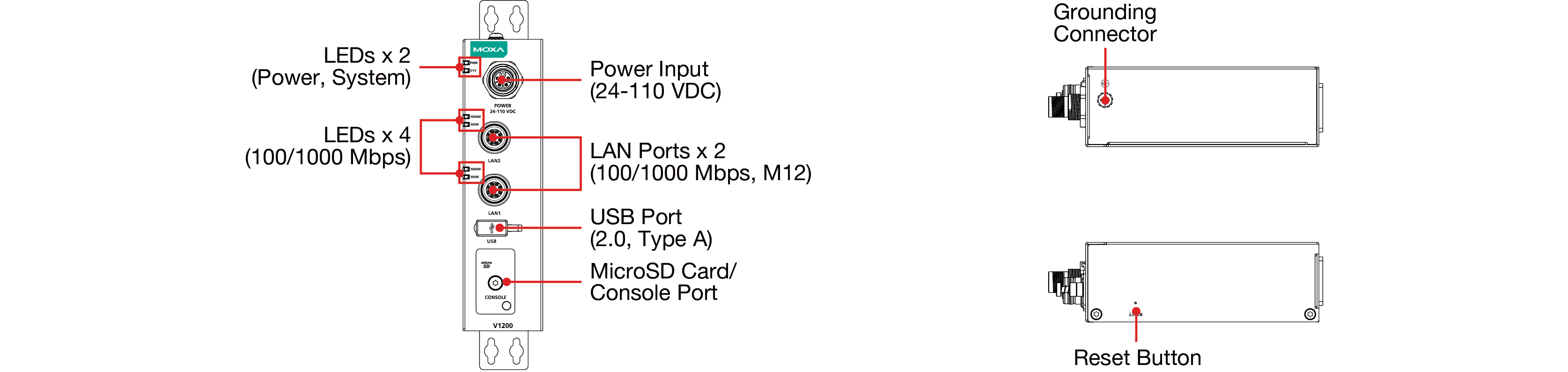

V1202-CT-T Model

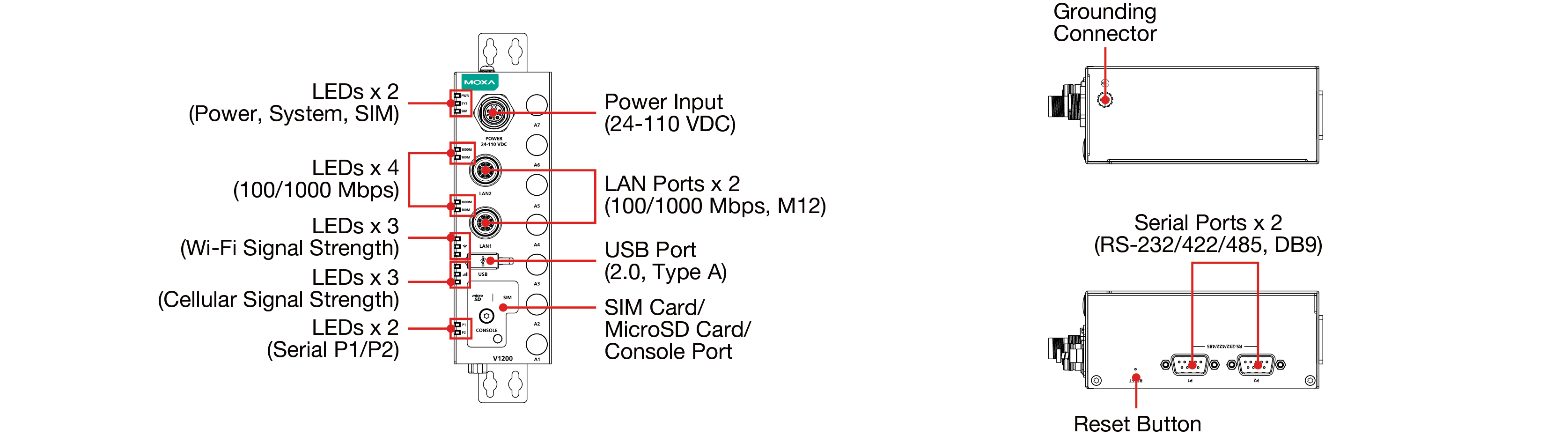

V1222-CT-T Model

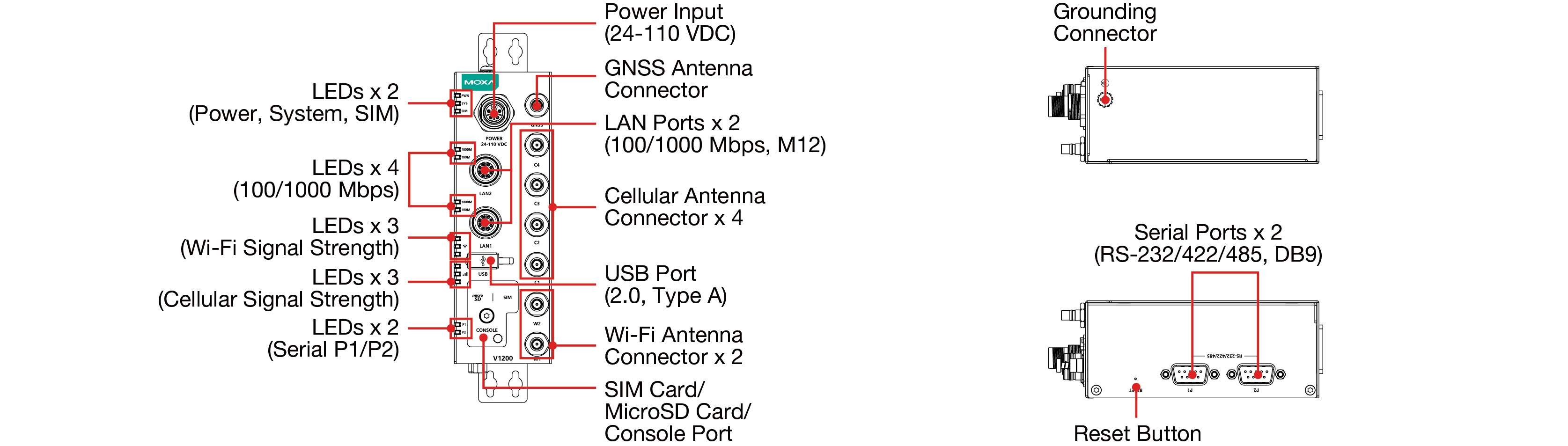

V1222-W-CT-TModel
