V3210-TL7-8L-TSN-CT-T

Moxa V3210-TL7-8L-TSN-CT-T

V3200 Series
V3210-TL7-8L-TSN-CT-T ; x86 computer-Intel 11th Gen Core i7-1185GRE 1.8 GHz processor,1 HDMI port,1 VGA port,8 GbE ports,2 COM ports,2 DIs,2 DOs,dual 2.5-inch SSD slots,1 mPCIe slot,2 M.2 B key slots,1 M.2 E key slot,2 USB ports,DDR4 16GB,M.2 M key 1
Image of V3210-TL7-8L-TSN-CT-T
Free Ground Shipping on U.S. Orders over $99 $7,245.00 ON BACKORDER Estimated Availability: 02/25/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-v3200-series-datasheet-v2.0.pdf
  • Intel® Celeron®/Intel® Core™ i3/i5/i7 embedded computer for in-vehicle applications
  • Multiple interfaces: Up to 8 GbE, 2 serial, 2 USB ports, 2 DIs, 2 DOs, and 2 M.2 B key slots for wireless (5G), 1 mPCIe slot for wireless (Wi-Fi 5 or 4G), 1 M.2 E key for wireless (Wi-Fi 6)
  • Supports dual independent displays (VGA and HDMI with 4K resolution)
  • Native TSN support (for models with i7-1185GRE processor)
  • Onboard TPM module for enhanced cybersecurity
  • Complies with all EN 50155 mandatory test items This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here: www.moxa.com/doc/specs/EN_50155_Compliance.pdf
  • Compliant with EN 50121-4
  • IEC 61373 certified for shock and vibration resistance
View More
Overview Specifications Accessories

Introduction

The V3200 Series embedded computers are built aroundan Intel® Core™ i7/i5/i3 or Intel® Celeron® high-performance processorand come with up to 64 GB RAM, one M.2 2280 M key slot, and two 2.5"SSD slots for storage expansion. The computers are compliant withEN 50155:2017 and EN 50121-4 standards covering operating temperature,power input voltage, surge, ESD, and vibration, making them suitablefor railway onboard and wayside applications.

For connecting with onboardand wayside systems and devices, the V3200 computers are equippedwith a rich set of interfaces including 4 Gigabit Ethernet ports (default;can go up to 8 ports) with one-pair LAN bypass function to ensureuninterrupted data transmission, 2 RS-232/422/485 serial ports, 2DIs, 2 DOs, and 2 USB 3.0 ports. The built-in TPM 2.0 module ensuresplatform integrity and provides hardware-based security as well asprotection from tampering.

Vehicular applications require reliable connectivity.They also require clear indicators on the device that identify thestatus of the software. The V3200 computers come with two 5G/one LTEand 6 SIM-card slots to help establish redundant LTE/Wi-Fi connectionsand three programmable LEDs that enable monitoring of the runtimestatus of software.

Appearance

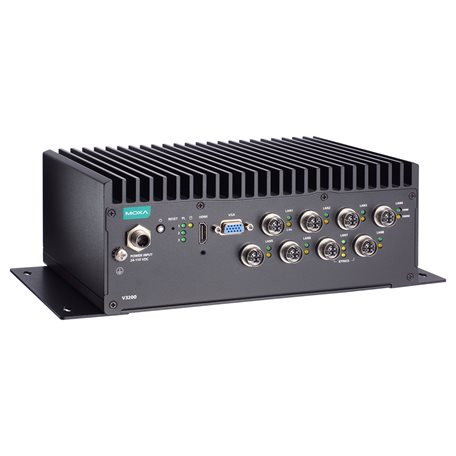

Front View 8P Models

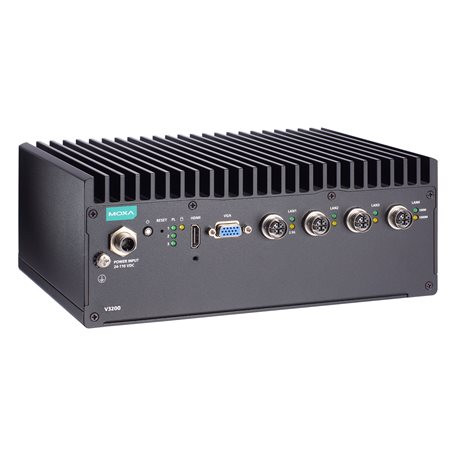

Front View4P Models

Rear View
