V3408-TL3-W-CT-T

V3408-TL3-W-CT-T

V3400 Series
x86 computers Intel Core, i3-1115G4E processor, 8 GbE, 2 serial, 2 DIs, 2 DOs, 2 USB 3.0 ports, 1 HDMI, 1 VGA port, 2 hot-swappable HDD/SSD slots, multiple expansion slots for wireless modules, 24 to 110 VDC, isolation, -40 to 70°C
Image of V3408-TL3-W-CT-T
ADD TO CART
$9,718.67
Out of stock
  • Contact Us for Availability or Possible Alternatives
Exclusive Bulk Pricing on Select Products
Sign Up to Access.

Features and Benefits

moxa-v3400-series-datasheet-v1.0.pdf
  • Intel® Core™ i3/i7 embedded computer for in-vehicle applications
  • Multiple wireless connectivity options: Up to two 5G, one Wi-Fi 6, and one 4G or Wi-Fi 5
  • Up to 8 Ethernet ports, suitable for onboard secure-gateway application
  • Two hot-swappable HDD/SSD slots with locks for enhanced security
  • Onboard TPM module for enhanced cybersecurity
  • Low voltage monitoring support of RTC battery
  • Isolated 24 to 110 VDC power input to meet versatile power requirements of rolling-stock applications
  • Meets EN 50155 OT4 operating temperature (-40 to 70°C with cellular and Wi-Fi modules enabled)
  • Complies with EN 50121-4
  • Complies with IEC 61373 requirements for shock and vibration resistance
  • Complies with all EN 50155 mandatory test items This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here: www.moxa.com/doc/specs/EN_50155_Compliance.pdf
  • -40 to 70°C operating temperature with cellular and Wi-Fi modules enabled (EN 50155 OT4 range)
View More

Overview Specifications Accessories

Introduction

The V3400 Series embedded computers are built aroundan Intel® Core™ i7/i3 high-performance processor and come with upto 64 GB RAM, one M.2 2280 M key slot, and two hot-swappable HDD/SSDfor storage expansion. The computers are compliant with EN 50155 andEN 50121-4 standards covering operating temperature, power input voltage,surge, ESD, and vibration, making them suitable for railway onboardand wayside applications. For enhanced security, the cover of thestorage slots comes with a lock, allowing only authorized personnelwith keys to access the storage drives.

For connecting with onboard andwayside systems and devices, the V3400 computers are equipped witha rich set of interfaces including 4 to 8 Gigabit Ethernet ports withone-pair LAN bypass function (V3408 models only) to ensure uninterrupteddata transmission, 2 RS-232/422/485 serial ports, 2 DIs, 2 DOs, and2 USB 3.0 ports. The built-in TPM 2.0 module ensures platform integrityand provides hardware-based security as well as protection from tampering.

Vehicular applicationsrequire reliable connectivity. They also require clear indicatorson the device that identify the status of the software. V3400 computerssupport multiple wireless configurations such as two 5G modules inM.2 slots, one LTE or Wi-Fi 5 in an mPCIe slot, and one Wi-Fi 6 inan M.2 slot. Six SIM-card slots help establish redundant 5G/LTEi connections.An optimized mechanism and thermal design allow the V3400 to meetthe EN 50155 OT4 (-40 to 70°C) requirement, even with two 5G modulesand one Wi-Fi 6 module installed, making it well suited for practicalapplications in demanding onboard transportation environments.

Appearance

V3404-TL Models—Front View

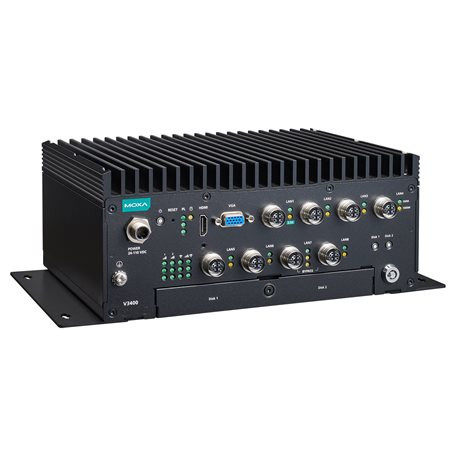

V3408-TLModels—Front View

Rear View
