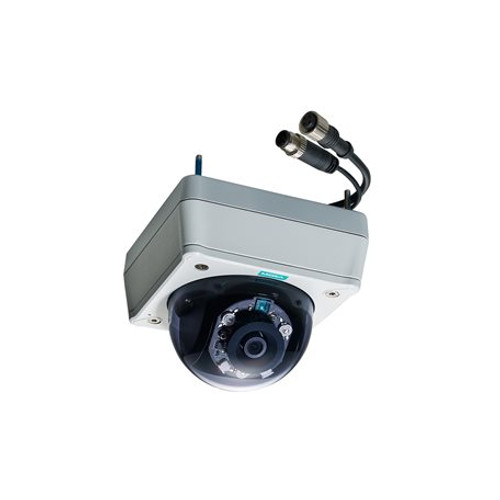

VPort P16-1MP-M12-IR-CAM36-T

Moxa VPort P16-1MP-M12-IR-CAM36-T

VPort P16-1MP-M12-IR Series
EN50155, HD image, fixed-dome IP camera, PoE, M12 connector, IR, MIC, 1DI, 3.6mm lens, -40 to 70°C
Free Ground Shipping on U.S. Orders over $99 $1,038.98 ON BACKORDER Estimated Availability: 02/21/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-vport-p16-1mp-m12-ir-series-datasheet-v1.0.pdf
  • 1/2.7” progressive scan camera with maximum 1280 x 800 resolution at up to 30 fps
  • Built-in IR illuminator and ICR (Infrared Cut Filter Removal) for day & night images
  • High quality video imaging with DNR and WDR
  • Up to 3 H.264 or MJPEG independent video streams
  • DynaStream™ for optimized network efficiency
  • CBR Pro™ for high image quality in limited bandwidth transmissions
  • Supports DHCP options 66 and 67 for auto-configuration
  • 1 built-in microphone for audio input, and 1 digital input for external sensor
  • ONVIF support for standardization and interoperability
View More
Overview Specifications Accessories

Introduction

The rugged VPort P16-1MP-M12-IR cameras produce HD (720P, 1280 x 720) video images and feature 3 H.264/MJPEG video streams, giving them the versatility and ruggedness needed for mobile IP video surveillance applications in a variety of different installations and environments. In addition, the cameras feature vandal-proofing (EN 62262 IK10), a -25 to 55°C or -40 to 70°C (T models) operating temperature, a rugged M12 Ethernet port, PoE power input, a built-in microphone, a digital input, IP66 rain and dust protection, an IR illuminator for day & night image capabilities, and are compliant with the mandatory sections of EN 50155. This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, refer to:www.moxa.com/doc/specs/EN_50155_Compliance.pdf
