AIG-101-T-US

MOXA AIG-101-T-US

AIG-101 Series
2-port Modbus RTU/ASCII/TCP to MQTT/Azure/AWS Cloud-supported gateways, US region with built-in LTE Cat. 1 (QTC)
Free Ground Shipping on U.S. Orders over $99 $778.05 IN STOCK: 7 Units ON ORDER: 6 Units
Need it on next buniness day? Choose 1-Day Shipping Before 4:00 p.m. E.S.T at checkout.
ADD TO CART

Features and Benefits

moxa-aig-101-series-datasheet-v2.0.pdf
  • Supports generic MQTT client
  • Supports MQTT connection with built-in device SDKs for Azure/AWS cloud
  • Supports Modbus RTU/ASCII/TCP master/client
  • Supports Modbus TCP server
  • Built-in network traffic monitoring and diagnostic tool for easy troubleshooting
  • Supports data buffering using store and forward and datalogger
  • Seamless integration with Moxa ioLogik /UPort devices to easily extend I/O and serial interfaces
  • Built-in data processing function to eliminate programming efforts
  • -40 to 70°C operating temperature range
  • LTE Cat.1 US, EU, and APAC models available
View More
Overview Specifications Accessories

Introduction

The AIG-101 Series gateways are entry-level IIoT gatewaysthat connect Modbus RTU/ASCII/TCP devices to cloud platforms and applicationssuch as Azure, AWS, and MQTT. The AIG-101 as a Modbus master can integrateexisting Modbus devices with cloud platforms, effortlessly collectingand transmitting data to the Azure and AWS clouds. Moreover, the gatewaysalso support the Modbus TCP slave mode, enabling simultaneous transmissionof data to a cloud platform and local SCADA system.

Effortless Extension of I/O and Serial Interfaces

As the number of field sites increases, additional I/Oor serial interfaces are required to connect devices, such as sensors,meters, and inverters, for collecting and processing the large amountof data that is generated. A typical approach is to install remoteI/O and device servers to extend the interfaces, but the configurationsettings required can be a nightmare for most users. To provide anextremely simple configuration process for interface extension, AIG-101gateways have better integration and come with an intuitive wizardthat can configure Moxa ioLogiks and UPorts with just a few clicks.

Built-in Ready-to-use Data Preprocessing Functions, No Coding Required

Energy Management Systems mainly collect energy datasuch as average power generation and energy efficiency. This datais then used to display on-site conditions, observe the energy trend,and optimize energy usage. Most edge systems require additional programmingto process the data required by energy management system. The AIG-101can preprocess the edge data and directly send meaningful data tothe energy management systems. The intuitive UI enables easy configurationof the IIoT gateway settings to collect and process data.

Secure Remote Access Reduces Maintenance Costs

The AIG-101 comes with powerful troubleshooting toolsto diagnose issues with protocol statuses and capture and analyzetraffic packets, enabling engineers to remotely identify the rootcause of issues and quickly bring the operation back to normal. Thetools also provide secure remote access to the AIG-101 to enable themaintenance engineers to directly access it, saving a lot of timeand effort and reducing system downtime in energy management systems.

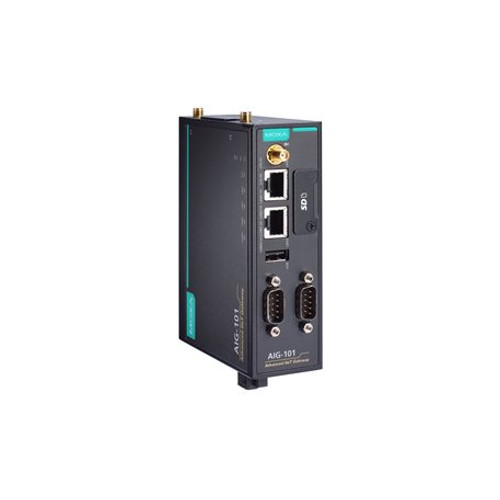

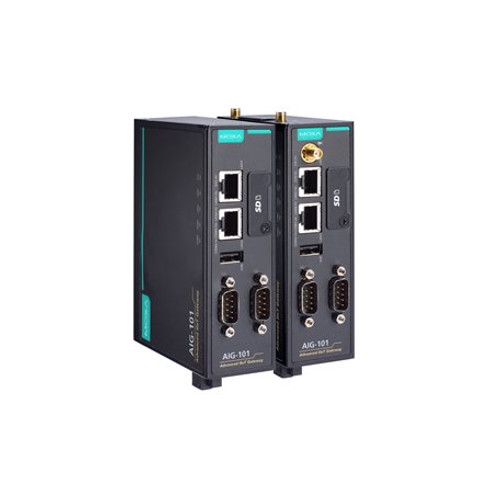

Appearance

AIG-101-T-AP/EU/US

AIG-101-T
