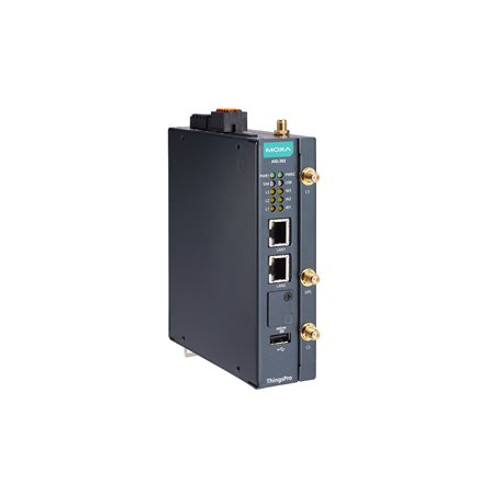

AIG-302-T-AZU-LX

AIG-302 Series

AIG-302-T-AZU-LX ; Advanced IIoT gateways with ARM Cortex-A7 dual-core 1GHz processor, Azure IoT Edge software, -40 to 85°C operating temperature

Free Ground Shipping on U.S. Orders over $99 $751.28 IN STOCK: 13 Units ON ORDER: 8 Units

Need it on next buniness day? Choose 1-Day Shipping Before 4:00 p.m. E.S.T at checkout.

ADD TO CART

Features and Benefits

moxa-aig-302-series-datasheet-v1.1.pdf

Supports generic MQTT client to facilitate MQTT connections via built-in device SDKs tailored for Azure cloud integration
Supports Modbus RTU/ASCII/TCP client
Supports Modbus TCP server
Supports Azure IoT Edge
Built-in network traffic monitoring and diagnostic tool for easy troubleshooting
Provides robust OTA function to prevent system failure during software upgrades
Equipped with secure boot to prevent malicious software-injection attacks
-40 to 70°C operating temperature range
LTE Cat. 4 US, EU, and APAC models available

Overview Specifications Accessories

Introduction

The AIG-302 Series advanced IIoT gateways connect ModbusRTU/ASCII/TCP devices to clouds such as Azure, and MQTT platform.The gateways support the Modbus TCP server mode, enabling simultaneoustransmission of data to a cloud platform and local SCADA system.

Boost Edge Computing Capabilities With Azure IoT Edge

AIG-302 supports Azure IoT Edge to bring in a multitudeof benefits, including edge computing capabilities, reduced bandwidthcosts, flexibility and scalability, seamless integration with Azureservices, and ease of management and updates. Specifically, with theAIG-302 processing data locally, it not only offers rapid responseand low latency but also effectively reduces network bandwidth usage,thereby cutting costs. Additionally, the modular design of AIG-302supporting Azure IoT Edge makes your system both flexible and easilyexpandable. At the same time, its seamless integration with Azurecloud services allows you to effortlessly extend cloud capabilitiesto edge devices.

Built-in Ready-to-use Data Preprocessing Functions, No Coding Required

Energy Management Systems mainly collect energy datasuch as average power generation and energy efficiency. This datais then used to display on-site conditions, observe the energy trend,and optimize energy usage. Most energy management systems requiremeaningful data so gateways at the field site require to preprocessthe edge collected data in advanced. For some applications, they evenrequire to do actions within a short period of time after preprocessingthe collected data. AIG-302 series have built in the intuitive UIenables to handle the data easily.

Secure Remote Access Reduces Maintenance Costs

The AIG-302 comes with powerful troubleshooting toolsto diagnose issues with protocol statuses and capture and analyzetraffic packets, enabling engineers to remotely identify the rootcause of issues and quickly bring the operation back to normal. Moreover,AIG-302 series provide secure remote access allowing maintenance engineerssaving a lot of time and effort and reducing system downtime in energymanagement systems.

Security Dashboard Optimized for Detecting Security Issues

The security dashboard utilizes device scanning to identifypotential cybersecurity threats from multiple angles, such as duringaccount settings management, application networking, application resourceusage monitoring, product certificates deployment, service settingsmodifications, and system status checks. Upon detecting threats, amitigation plan is recommended to resolve issues.
