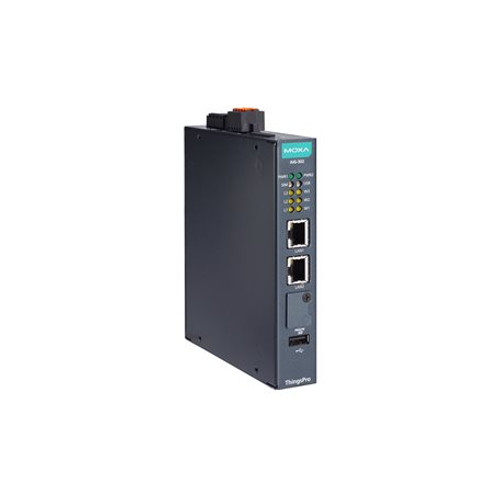

MOXA AIG-302-T-US-AZU-LX

AIG-302 Series

Advanced IIoT gateways with ARM Cortex-A7 dual-core 1GHz processor, Azure IoT Edge software, -40 to 70°C operating temperature, US region LTE module preinstalled

Free Ground Shipping on U.S. Orders over $99 $1,100.66 IN STOCK: 7 Units ON ORDER: 10 Units

Need it on next buniness day? Choose 1-Day Shipping Before 4:00 p.m. E.S.T at checkout.

ADD TO CART

Features and Benefits

moxa-aig-302-series-datasheet-v2.0.pdf

Supports generic MQTT client to facilitate MQTT connections via built-in device SDKs tailored for Azure cloud integration
Supports Modbus RTU/ASCII/TCP client
Supports Modbus TCP server
Supports Azure IoT Edge
Built-in network traffic monitoring and diagnostic tool for easy troubleshooting
Provides robust OTA function to prevent system failure during software upgrades
Equipped with Secure Boot to prevent malicious software-injection attacks
-40 to 70°C operating temperature range
LTE Cat. 4 US, EU, and APAC models available

Overview Specifications Accessories

Introduction

The AIG-302 Series advanced IIoT gateways connect ModbusRTU/ASCII/TCP devices to platforms such as Azure cloud and MQTT. Thegateways support the Modbus TCP server mode, enabling simultaneoustransmission of data to cloud platforms and your local SCADA system.

Boost Edge Computing Capabilities With Azure IoT Edge

AIG-302 supports Azure IoT Edge to bring in a multitudeof benefits, including edge computing capabilities, reduced bandwidthcosts, flexibility and scalability, seamless integration with Azureservices, and ease of management and update. Specifically, with theAIG-302 processing data locally, it not only offers rapid responsesand low latency but also effectively reduces network bandwidth usage,thereby cutting costs. Additionally, the modular design of the AIG-302and Azure IoT Edge support make your system both flexible and easilyexpandable. At the same time, its seamless integration with Azurecloud services allows you to effortlessly extend cloud capabilitiesto edge devices.

Built-in Ready-to-use Data Preprocessing Functions, No Coding Required

Energy Management Systems collect energy data such asaverage power generation and energy efficiency. This data is thenused to display on-site conditions, observe the energy trend, andoptimize energy usage. Most energy management systems require meaningfuldata and hence edge gateways are expected to preprocess data collectedat field sites before transfer to cloud applications. Some applicationsmay require certain actions to be performed within a short time frameon the preprocessed data. AIG-302 ready-to-run IIoT gateways comewith value-added functions and an intuitive UI that simplify datapreprocessing and distributed device management to just a few clicks.

Secure Remote Access Reduces Maintenance Costs

The AIG-302 comes with powerful troubleshooting toolsto diagnose issues with protocol statuses and capture and analyzetraffic packets, enabling engineers to identify the root cause ofissues and quickly bring the operation back to normal. Moreover, AIG-302provides secure remote access allowing maintenance engineers to fixissues remotely, saving time and effort as well as reducing the downtime inenergy management systems. External connections can be encrypted usingOpenVPN or TLS, ensuring secure communication.

Security Dashboard Optimized for Detecting Security Issues

A security dashboard utilizes device scans to identifypotential cybersecurity threats from multiple angles, such as duringaccount settings management, application networking, application resourceusage monitoring, product certificates deployment, service settingsmodifications, and system status checks. Upon detecting threats, amitigation plan is recommended to resolve issues.
