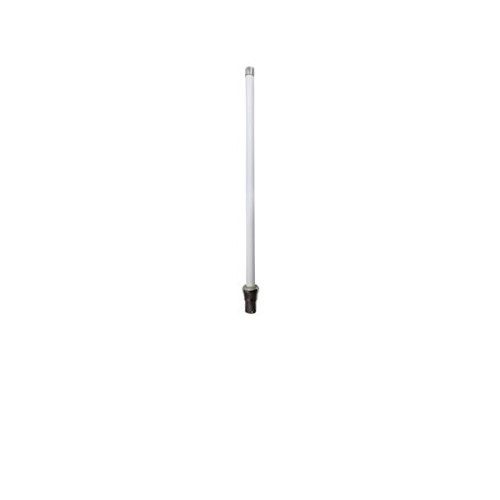

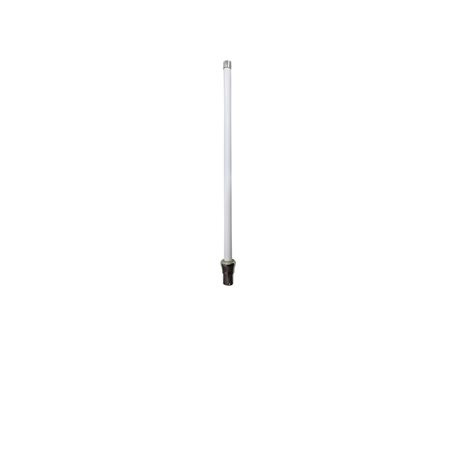

ANT-WDB-ONF-0709 Series

ANT-WDB-ONF-0709 Series

07 dBi at 2.4 GHz and 09 dBi at 5 GHz, N-type (female), dual-band omnidirectional antenna
ANT-WDB-ONF-0709 Series
Free Ground Shipping on U.S. Orders over $99
VIEW MODELS
 Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-ant-wdb-onf-0709-series-datasheet-v1.0.pdf
  • High-gain antenna to enhance performance
  • Waterproof N-type connector
  • Lightweight
  • Compact form factor
  • Pole-mounting support
  • Housing provides IP65 protection
  • -40 to 80°C operating temperature range
View More
Product ID Product Description Availability Price Qty
ANT-WDB-ONF-0709 Series $0
ADD TO CART
Accessories Overview Specifications

Introduction

The ANT-WDB-ONF-0709is an omnidirectional dual-band high-gain antenna with a waterproofN-type female connector. The IP65-rated housing, pole-mounting support,and wide operating temperature range of -40 to 85°C make it suitablefor outdoor use.

Field Patterns

X-Y Plane

X-Z Plane

Y-Z Plane
