ANT-WDB-PNF-1011 Series

Moxa ANT-WDB-PNF-1011 Series

10 dBi at 2.4 GHz and 11 dBi at 5 GHz, N-type (female), dual-band directional antenna
ANT-WDB-PNF-1011 Series
Free Ground Shipping on U.S. Orders over $99
VIEW MODELS
 Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-ant-wdb-pnf-1011-series-datasheet-v1.0.pdf
  • High-gain antenna to enhance performance
  • Waterproof N-type connector
  • Pole-mounting support
  • Housing provides IP65 protection
  • -40 to 85°C operating temperature range
View More
Product ID Product Description Availability Price Qty
Overview Specifications Accessories

Introduction

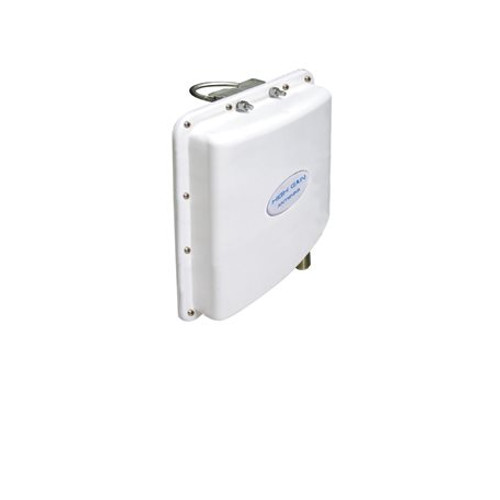

The ANT-WDB-PNF-1011is adual-band high-gain directional panel antenna with a waterproofN-type female connector. The antenna provides a gain of 10 dBi at2.4 GHz and 11 dBi at 5 GHz. The IP65-rated housing, pole-mountingsupport, and wide operating temperature range of -40 to 85°C makeit suitable for outdoor use.

Field Patterns

X-Y Plane

X-Z Plane

Y-Z Plane
