BXP-A100 Series

Moxa BXP-A100 Series

Box computers with Elkhart Lake Intel Atom® X Series processor base model and high-interface models
Free Ground Shipping on U.S. Orders over $99
VIEW MODELS
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-bxp-a100-series-datasheet-v1.0.pdf
  • Box-type computer with fanless design
  • Intel Atom® X Series processor
  • Rich interface options for up to 10 serial and 10 LAN ports
  • Compact size to fit most field applications
  • -30 to 60°C operating temperature range
View More
Product ID Product Description Availability Price Qty
Overview Specifications Accessories

Introduction

The BXP-A100wall-mount computers are powered by an Intel Atom® X processor. Thecomputers come with a rich set of interface options including up to10 software-selectable RS-232/422/485 serial ports, up to 10 gigabitEthernet ports, 4 digital inputs, and 4 digital outputs. The communicationinterfaces are located on the front and rear sides of the product,enabling easy access and expansion for industrial applications. Adual-storage design that includes CFast and SD slots enables easystorage expansion. The unique battery fastener cover design for thebattery slot secures the battery in place and ensures stability inall operating environments.

The BXP-A100compact wall-mountable computers come in a fanless design and canwithstand a temperature range of -30 to 60°C, making them a good fitfor harsh operating environments. The built-in TPM 2.0 module securesthe platform from unauthorized access. The BXP-A100 Series is an intelligentcomputing solution that perfectly fulfills both OT and IT requirementsof industrial environments.

Appearance

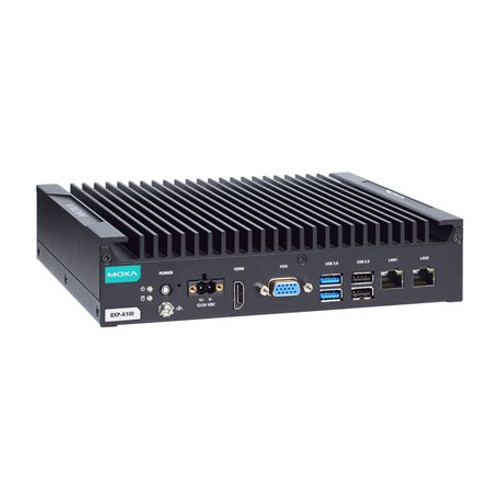

Front View

BXP-A100-E2-T/BXP-A100-E4-TModels

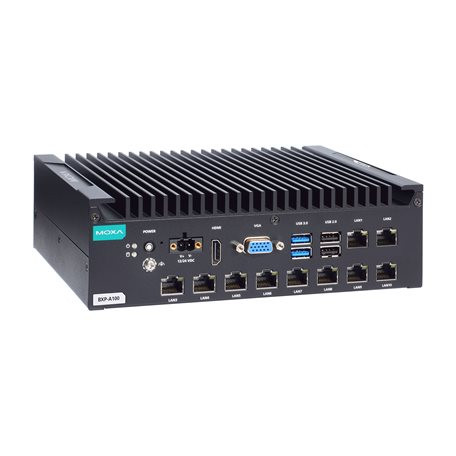

BXP-A100-E2-8L-T/BXP-A100-E4-8L-TModels

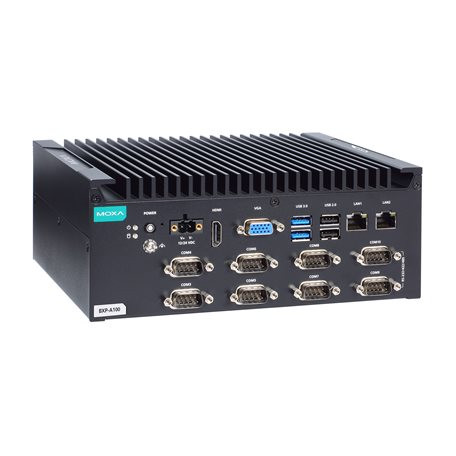

BXP-A100-E2-8C-T/BXP-A100-E4-8C-TModels

BXP-A100-E2-2L3C-T/BXP-A100-E4-2L3C-TModels

Rear View

BXP-A100-E2-T/BXP-A100-E4-T Models

BXP-A100-E2-8L-T/BXP-A100-E4-8L-TModels

BXP-A100-E2-8C-T/BXP-A100-E4-8C-TModels

BXP-A100-E2-2L3C-T/BXP-A100-E4-2L3C-TModels
