CA-114

MOXA CA-114

CA-114 Series
4 Port PC/104 Board, RS-232/422/485

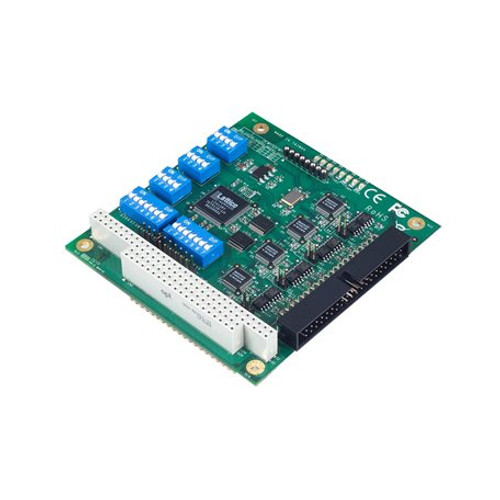

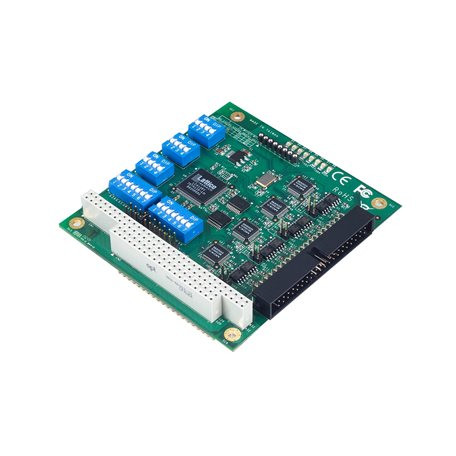

Image of CA-114
ADD TO CART
$251.58
Out of stock
  • Can be backordered
  • Contact Us for Availability or Possible Alternatives
Exclusive Bulk Pricing on Select Products
Sign Up to Access.
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-ca-114-series-datasheet-v1.3.pdf
  • 921.6 kbps maximum baudrate for fast data transmission
  • On-chip hardware and software flow control
  • IRQ settings, I/O settings, and serial interface are jumper and DIP switch selectable
  • Onboard Tx and Rx LED indicators for each port
  • Supports Windows CE 5.0/6.0 and Windows XP Embedded operating systems
  • Wide-temperature model available for -40 to 85°C environments
View More

Overview Specifications Accessories

Introduction

The CA-114 PC/104 modules are reliable, high-performance, multiport serial communication solutions that have 4 RS-232/422/485 ports, and can be used with PC/104 CPU boards that accept the PC/104 expansion interface. Optional DB9 and DB25 connection cables are available for connecting to serial devices, and versatile driver support makes the modules suitable for a wide range of applications.
