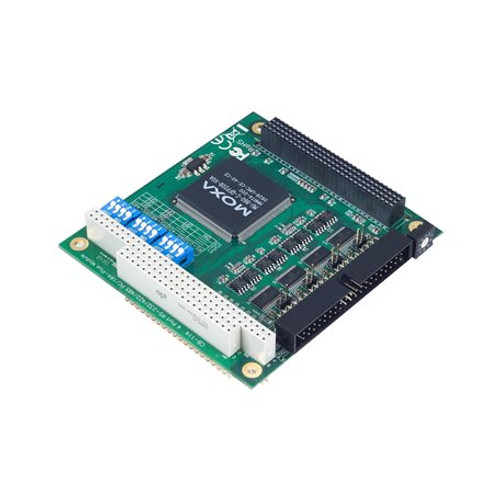

CB-114 Series 4-port RS-232/422/485 PC/104-Plus modules
Features and Benefits
moxa-cb-114-series-datasheet-v1.2.pdf
  • 921.6 kbps maximum baudrate for fast data transmission

  • On-chip hardware and software flow control

  • Serial interface is DIP switch selectable

  • Onboard Tx and Rx LED indicators for each port

  • Supports Windows, Windows CE 5.0/6.0, and Windows XP Embedded operating systems

  • Wide-temperature model available for -40 to 85°C environments

View More
Product ID Product Description Availability Price Qty
$0
ADD TO CART
Accessories Overview Specifications

Introduction

The CB-114 PC/104-Plus modules come with 4 RS-232/422/485 ports, and can be used with PC/104-Plus CPU boards that accept the PC/104-Plus expansion interface. Optional DB9 and DB25 connection cables are available for connecting to serial devices, and versatile driver support makes the modules suitable for a wide range of applications. The CB-114 modules can be used on the PC/104-Plus (PCI) bus, and provide a reliable, high-performance solution for multiport serial communication.
