CB-602I Series 2-port CAN interface PC/104-Plus modules with 2 kV isolation
CB-602I Series
Free Ground Shipping on U.S. Orders over $99
VIEW MODELS
Features and Benefits
moxa-cb-602i-series-datasheet-v1.1.pdf

  • Supports CAN 2.0A and CAN 2.0B

  • Two independent CAN communication ports

  • CAN transfer rate up to 1 Mbps

  • 2 kV electrical isolation

  • LED for transmit/receive status on each port

  • Optional 120-ohm terminal resistor for CAN bus network

  • DLL library and examples included

  • Windows drivers provided

View More
Product ID Product Description Availability Price Qty
CB-602I Series $0
ADD TO CART
Accessories Overview Specifications

Introduction

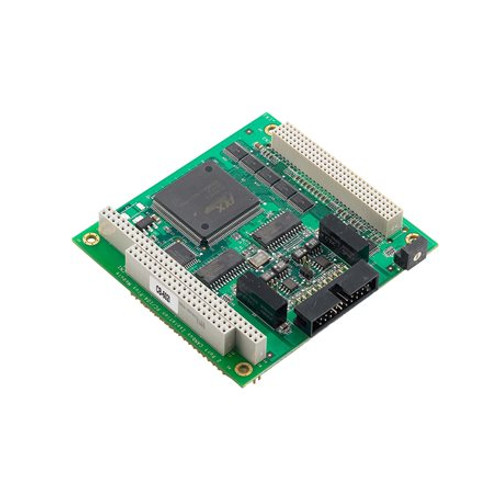

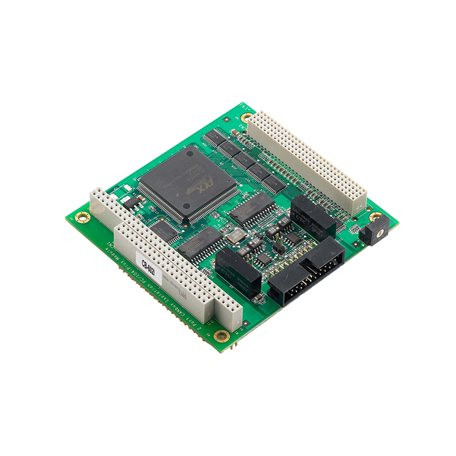

Moxa’s CB-602I CAN (Controller Area Network) interface boards support the PC/104-Plus interface. Optional DB9 and DB25 connection cables are available for connecting to CAN interface devices. The CB-602I CAN interface boards use the NXP SJA1000 and PCA82C251 transceiver, which provide bus arbitration and error detection. The -40 to 85°C wide operating temperature (CB-602I-T only) and 2 kV isolation make the boards suitable for use in harsh industrial environments.
