CB-108 Series

CB-108 Series

8-port RS-232 PC/104-Plus modules
CB-108 Series
Free Ground Shipping on U.S. Orders over $99
VIEW MODELS
 Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-cb-108-series-datasheet-v1.2.pdf
  • 921.6 kbps maximum baudrate for fast data transmission
  • On-chip hardware and software flow control
  • Onboard Tx and Rx LED indicators for each port
  • Supports Windows, Windows CE 5.0/6.0, and Windows XP Embedded operating systems
  • Wide-temperature model available for -40 to 85°C environments
  • Easy maintenance with built-in LEDs and management software
View More
Product ID Product Description Availability Price Qty
CB-108 Series $0
ADD TO CART
Accessories Overview Specifications

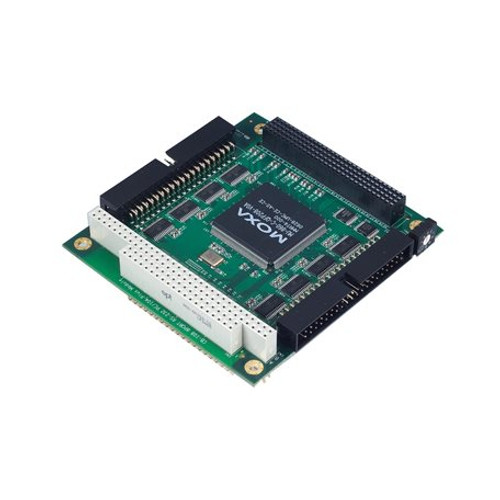

Introduction

The CB-108 PC/104-Plus modules come with 8 RS-232 ports, and can be used with PC/104-Plus CPU boards that accept the PC/104-Plus expansion interface. Optional DB9 and DB25 connection cables are available for connecting to serial devices, and versatile driver support makes the modules suitable for a wide range of applications. The CB-108 modules can be used on the PC/104-Plus (PCI) bus, and provide a reliable, high-performance solution for multiport serial communication.
