CP-114N Series

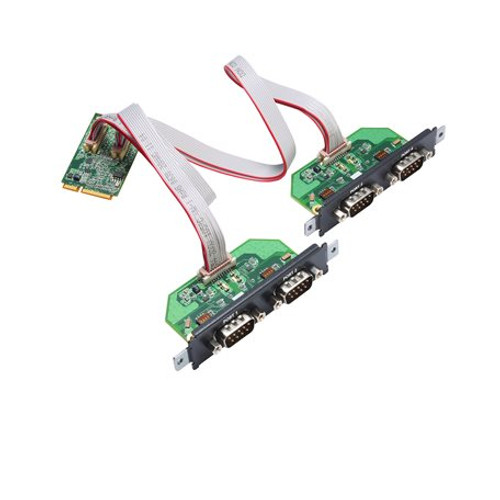

CP-114N-T ; 4-port RS-232/422/485 Mini PCI Express serial board, -40°C to 85 operating temperature
Image of CP-114N-T
Free Ground Shipping on U.S. Orders over $99 $401.25 IN STOCK: 0 Units

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-cp-114n-series-datasheet-v1.0.pdf
  • Mini PCIe interface support
  • 921.6 kbps maximum baudrate for fast data transmission
  • 128-byte FIFO and on-chip H/W, S/W flow control
  • Drivers provided for a broad selection of operating systems, including Windows and Linux
View More
Accessories Overview Specifications

Introduction

The CP-114N is a Mini PCI Express multiport serial boarddesigned for varies applications such as industrial automation systemand industrial PC manufacturers. The CP-114N is compatible with anyMini PCI Express slot. The board requires only a 3.3 VDC power supply,which means it can work with host computers ranging from DIN-railPCs to standard-sized PCs.

The CP-114N is a top choice of industrial automation engineers andsystem integrators and supports Windows and Linux operating systems.In addition, the four RS-232/422/485 serial ports support a fast 921.6kbps baudrate. The CP-114N provides full-modem control signals toensure compatibility with a wide range of serial peripherals. Theboard also provides 1 kV line-to-line surge protection, ensuring compatibilityin a wide range of industrial environments.

A New Family of Mini PCI Express Multiport Serial Boards for FasterTime to Market

Moxa’s new Mini PCI Express multiport serial board familyfulfills the need for customized expansion and enables faster timeto market for OEMs and system integrators. It includes Isolated andnon-Isolated RS-232/422/485 communication cards for various applications.

The serial boards featurehigh performance 16C950 compatible UARTs and are available in 4-portand 2-port versions compatible with all popular operating systems.They support data rates of up to 921.6 kbps and have 128-byte transmitand receive FIFOs. The serial boards can operate in the -40 to 85˚Ctemperature range. Door backets are included in the package for allmodels, enabling the installation of the serial boards in a Moxa IPCexpansion slot.
