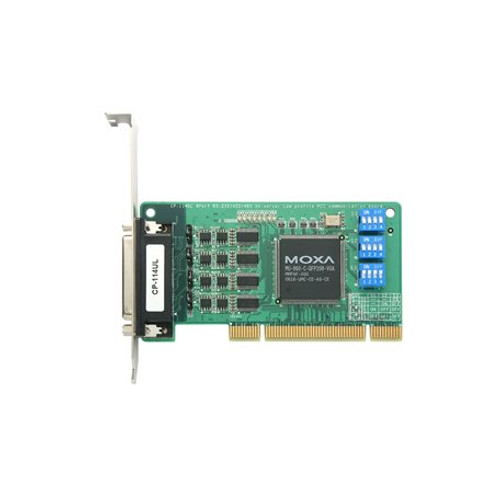

Moxa CP-114UL-I-DB25M
CP-114UL SeriesPlease contact us via sales@neteon.net or 888-908-3330 for other product options.
Features and Benefits
- Over 700 kbps data throughput for top performance
- 128-byte FIFO and on-chip H/W, S/W flow control
- Universal PCI compatible with 3.3/5 V PCI and PCI-X
- 921.6 kbps maximum baudrate for fast data transmission
- Drivers provided for a broad selection of operating systems, including Windows and Linux
- Easy maintenance with built-in LEDs
- Wide-temperature model available for -40 to 85°C environments
Introduction
Moxa’s CP-114UL Series of multiport serial boards isdesigned to be used by industrial automation system integrators forlong-distance, multipoint, PC-based data acquisition applications.On-chip Automatic Data Direction Control for precision RS-485 communicationrequires precise timing control to enable and disable the line driver.The Moxa Turbo Serial Engine™ chip that powers the CP-114UL boardscome with on-chip ADDC®, which makes RS-485 as easy to use as RS-232.In RS-485 mode, the serial port can connect up to 31 daisy-chainedRS-485 devices within a range of 1.2 km. For long-distance RS-485communication, 2 kV electrical isolation protections are availableto prevent equipment damage.
Drivers Provided for Windows, Linux, and UNIX
Moxa continues to support a wide variety of operatingsystems, and the CP-114UL boards are no exception. Reliable Windowsand Linux/UNIX drivers are provided for all Moxa boards, and otheroperating systems, such as WEPOS, are also supported for embeddedintegration.
