CP-114UL Series

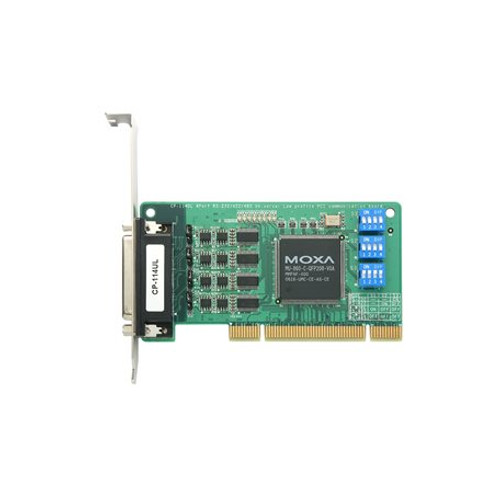

Moxa CP-114UL Series

4-port RS-232/422/485 Universal PCI serial boards with optional 2 kV isolation
CP-114UL Series
Free Ground Shipping on U.S. Orders over $99
VIEW MODELS
 Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-cp-114ul-series-datasheet-v1.4.pdf
  • Over 700 kbps data throughput for top performance
  • 128-byte FIFO and on-chip H/W, S/W flow control
  • Universal PCI compatible with 3.3/5 V PCI and PCI-X
  • 921.6 kbps maximum baudrate for fast data transmission
  • Drivers provided for a broad selection of operating systems, including Windows and Linux
  • Easy maintenance with built-in LEDs
  • Wide-temperature model available for -40 to 85°C environments
View More
Product ID Product Description Availability Price Qty
Overview Specifications Accessories

Introduction

Moxa’s CP-114UL Series of multiport serial boards isdesigned to be used by industrial automation system integrators forlong-distance, multipoint, PC-based data acquisition applications.On-chip Automatic Data Direction Control for precision RS-485 communicationrequires precise timing control to enable and disable the line driver.The Moxa Turbo Serial Engine™ chip that powers the CP-114UL boardscome with on-chip ADDC®, which makes RS-485 as easy to use as RS-232.In RS-485 mode, the serial port can connect up to 31 daisy-chainedRS-485 devices within a range of 1.2 km. For long-distance RS-485communication, 2 kV electrical isolation protections are availableto prevent equipment damage.

Drivers Provided for Windows, Linux, and UNIX

Moxa continues to support a wide variety of operatingsystems, and the CP-114UL boards are no exception. Reliable Windowsand Linux/UNIX drivers are provided for all Moxa boards, and otheroperating systems, such as WEPOS, are also supported for embeddedintegration.
