DA-680-I-16-WL3-HH

Moxa DA-680-I-16-WL3-HH

DA-680 Series
DA-680-I-16-WL3-HH ; x86 1U Intel Core i3-8145UE, with 8 Gigabit Ethernet ports, VGA, 16 RS-485 ports, mSATA, SATA, USB, dual Power, without RAM, mSATA and OS, -25 to 55°C temp.
Free Ground Shipping on U.S. Orders over $99 $2,362.96 IN STOCK: 0 Units

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-da-680-series-datasheet-v1.0.pdf
  • IEC 61850-3, IEEE 1613, and IEC 60255 compliant for power substation automation systems
  • Built-in DDR4 memory socket that supports 16 GB capacity
  • Supports 100 to 240 VAC/VDC power inputs (single-power and dual-power models available)
View More
Overview Specifications Accessories

Introduction

The DA-680 computer is built around an Intel® Core™ i3processor and comes with 8 Gigabit Ethernet ports, 1 VGA port, 8/16isolated RS-485 serial ports, and 5 USB ports. Additionally, one 2.5”HDD/SSD slot and one mSATA slot are included to enable storage expansionfor industrial applications that require large storage space for edgedata acquisition. With IEC 61850-3, IEEE 1613, and IEC 60255 compliance,the DA-680 is sure to deliver stable and reliable system operationfor power applications.

Appearance

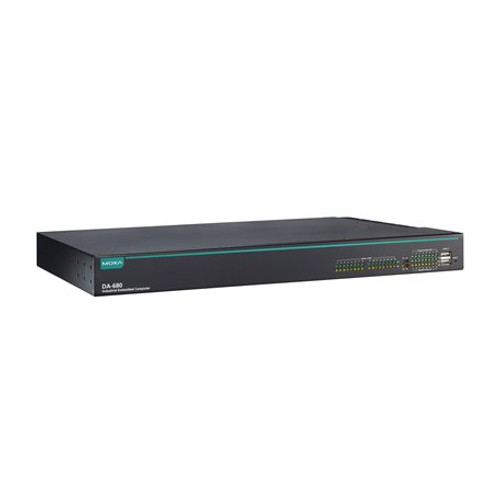

Front View

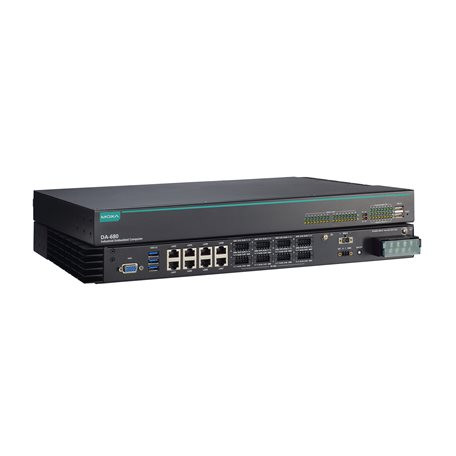

Rear View
