DRP-A100-E2-T-Win10

DRP-A100-E2-T-Win10

DRP-A100 Series
DRP-A100-E2-T-Win10 ; DIN-rail computer, Atom x6211E, 8GB DDR4, COMx2, LANx2, USB 3.0x3, VGA+HDMI, 12/24 VDC, 64GB CFAST, Win10
Free Ground Shipping on U.S. Orders over $99 $1,635.00 IN STOCK: 0 Units

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-drp-a100-series-datasheet-v1.0.pdf
  • DIN-rail mountable computers with fanless design
  • Intel Atom® x6211E dual-core 1.30 GHz or x6425E quad-core 2.0 GHz processor
  • Rich interface options for up to 8 serial and 10 LAN ports
  • Compact size to fit most field applications
  • -30 to 60°C operating temperature range
View More
Accessories Overview Specifications

Introduction

The DRP-A100Series DIN-rail mountable computers are powered by either an IntelAtom® x6211E dual-core 1.30 GHz or an Intel Atom® x6425E quad-core2.0 GHz processor. The computers come with a rich set of interfaceoptions including up to 8 software-selectable RS-232/422/485 serialports and up to 10 gigabit Ethernet ports. The communication interfacesare located on the front and rear sides of the product, enabling easyaccess and expansion for industrial applications. A dual-storage designthat includes CFast and SD slots enables easy storage expansion. Aunique battery-fastener cover secures the battery in place and ensuresstability in all operating environments while a trap-door design forthe battery slot enables easy battery swapping without having to removethe cover. The DRP-A100 Series is a reliable, durable, and versatileyet user-friendly computing platform for industrial applications.

The DRP-A100 compact computers come in afanless design and can withstand a temperature range of -30 to 60°C,making them a good fit for harsh operating environments. The built-inTPM 2.0 module secures the platform from unauthorized access. TheDRP-A100 Series is an intelligent computing solution that perfectlyfulfills both OT and IT requirements of industrial environments.

Appearance

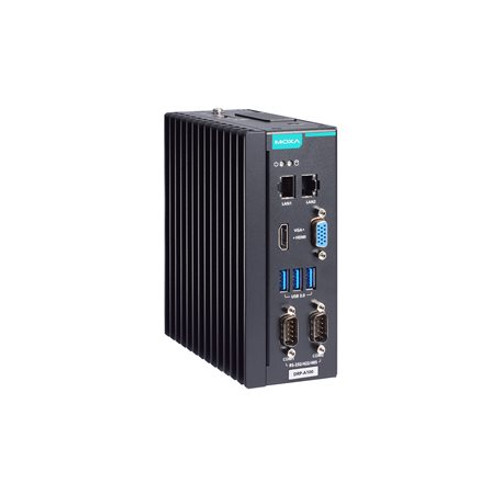

DRP-A100-E2-T/DRP-A100-E4-T/DRP-A100-E2-T-Win10/DRP-A100-E4-T-Win10Models

DRP-A100-E2-8L-T/DRP-A100-E4-8L-TModels

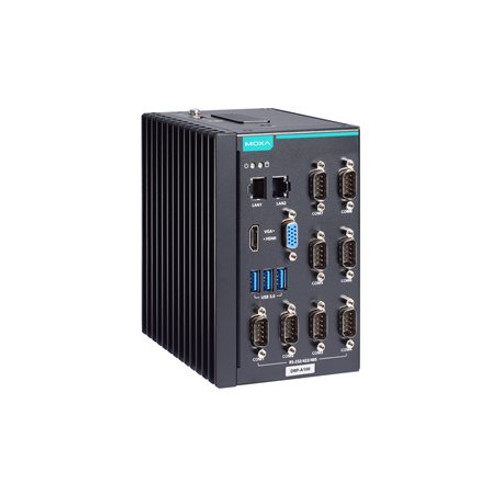

DRP-A100-E2-6C-T/DRP-A100-E4-6C-TModels

DRP-A100-E2-2L4C-T/DRP-A100-E4-2L4C-TModels
