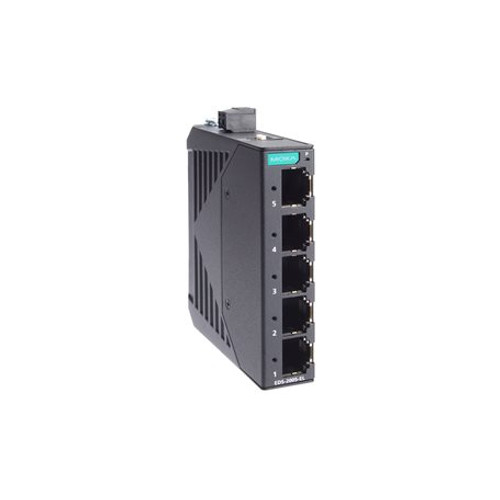

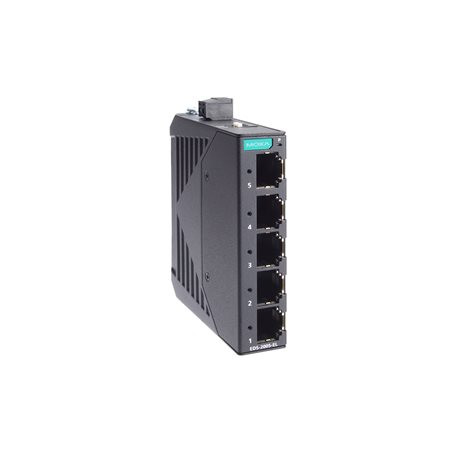

EDS-2005-EL Series

MOXA EDS-2005-EL Series

5-port entry-level unmanaged Ethernet switches with metal housing
EDS-2005-EL Series
VIEW MODELS
Exclusive Bulk Pricing on Select Products
Sign Up to Access.

Features and Benefits

moxa-eds-2005-el-series-datasheet-v2.0.pdf
  • 10/100BaseT(X) (RJ45 connector)
  • Compact size for easy installation
  • QoS supported to process critical data in heavy traffic
  • IP40-rated metal housing
  • -40 to 75°C wide operating temperature range (-T models)
  • Compliant with PROFINET Conformance Class A Only for models with hardware version 2.0.0 or later.
View More

Product ID Product Description Availability Price Qty
Overview Specifications Accessories

Introduction

The EDS-2005-EL series of industrial Ethernet switches have five 10/100M copper ports, which are ideal for applications that require simple industrial Ethernet connections. Moreover, to provide greater versatility for use with applications from different industries, the EDS-2005-EL Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel. In addition, the EDS-2005-EL Series has a rugged metal housing to ensure suitability for use in industrial environments.

The EDS-2005-EL Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capabilities. In addition to its compact size, the EDS-2005-EL Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDS-2005-EL Series has a standard operating temperature range of -10 to 60°C with wide-temperature (-40 to 75°C) models also available.

The EDS-2005-EL Series is also compliant with PROFINET Conformance Class A (CC-A), making these switches suitable for PROFINET networks.
