EDS-G2008-EL Series

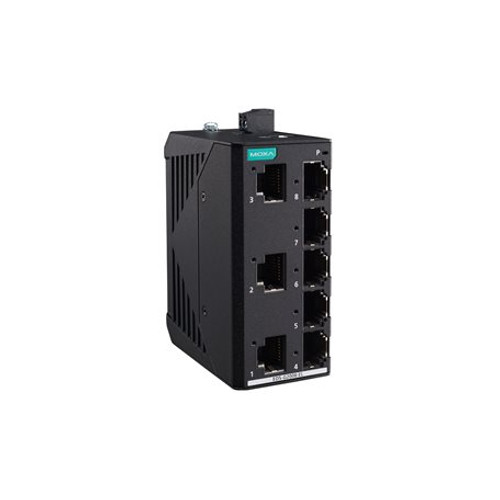

MOXA EDS-G2008-EL Series

8-port entry-level unmanaged full Gigabit Ethernet switches with metal housing
EDS-G2008-EL Series
VIEW MODELS
Exclusive Bulk Pricing on Select Products
Sign Up to Access.

Features and Benefits

moxa-eds-g2008-el-series-datasheet-v1.2.pdf
  • Full Gigabit Ethernet ports
  • Compact size for easy installation
  • QoS supported to process critical data in heavy traffic
  • IP40-rated metal housing
  • Compliant with PROFINET Conformance Class A
  • -40 to 75°C wide operating temperature range (-T models)
View More

Product ID Product Description Availability Price Qty
Overview Specifications Accessories

Introduction

The EDS-G2008-EL series of industrial Ethernet switcheshave eight Gigabit Ethernet ports, which are ideal for applicationsthat require simple industrial Ethernet connections. To provide greaterversatility for use with applications from different industries, theEDS-G2008-EL Series also allows users to enable or disable the Qualityof Service (QoS) function, and broadcast storm protection (BSP) withDIP switches on the outer panel. In addition, the EDS-G2008-EL Serieshas a rugged metal housing to ensure suitability for use in industrialenvironments.

The EDS-G2008-EL Series has a 12/24/48 VDC single powerinput, DIN-rail mounting, and high-level EMI/EMC capability. In additionto its compact size, the EDS-G2008-EL Series has passed a 100% burn-intest to ensure it will function reliably after it has been deployed.The EDS-G2008-EL Series has a standard operating temperature rangeof -10 to 60°C with wide-temperature (-40 to 75°C) models also available.

The EDS-G2008-EL Series is also compliantwith PROFINET Conformance Class A (CC-A), making these switches suitablefor PROFINET networks.
