EDS-G2008-EL Series
EDS-G2008-EL ; 8-Port full gigabit Entry-level Unmanaged Switch, 8 10/100/1000BaseT(X) ports, -10 to 60°C

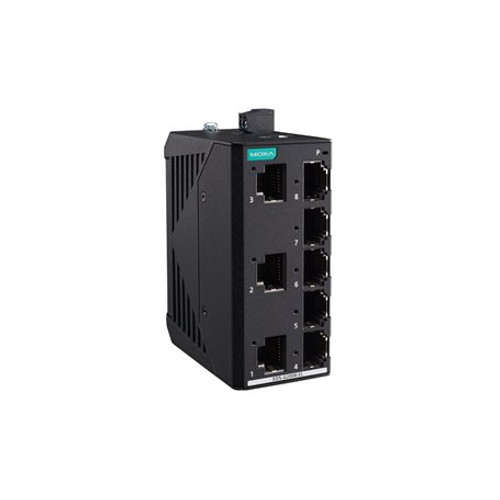

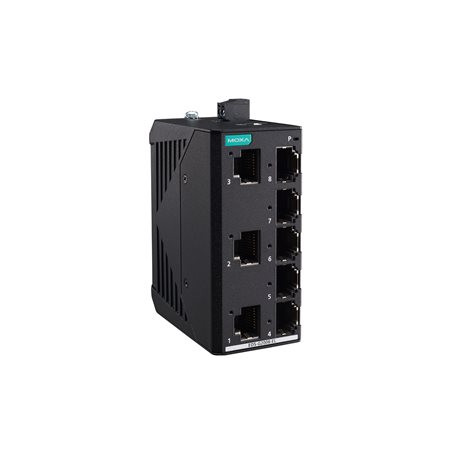

Image of EDS-G2008-EL
Free Ground Shipping on U.S. Orders over $99 $265.00 IN STOCK: 4 Units
Need it on next buniness day? Choose 1-Day Shipping Before 4:00 p.m. E.S.T at checkout.
ADD TO CART

Features and Benefits

moxa-eds-g2008-el-series-datasheet-v1.0.pdf
  • Full Gigabit Ethernet ports
  • Compact size for easy installation
  • QoS supported to process critical data in heavy traffic
  • IP40-rated metal housing
  • -40 to 75°C wide operating temperature range (-T models)
View More
Accessories Overview Specifications

Introduction

The EDS-G2008-EL series of industrial Ethernet switcheshave up to eight Gigabit Ethernet ports, which are ideal for applicationsthat require simple industrial Ethernet connections. To provide greaterversatility for use with applications from different industries, theEDS-2008-EL Series also allows users to enable or disable the Qualityof Service (QoS) function, and broadcast storm protection (BSP) withDIP switches on the outer panel. In addition, the EDS-G2008-EL Serieshas a rugged metal housing to ensure suitability for use in industrialenvironments.

TheEDS-G2008-EL Series has a 12/24/48 VDC single power input, DIN-railmounting, and high-level EMI/EMC capability. In addition to its compactsize, the EDS-G2008-EL Series has passed a 100% burn-in test to ensureit will function reliably after it has been deployed. The EDS-G2008-ELSeries has a standard operating temperature range of -10 to 60°C withwide-temperature (-40 to 75°C) models also available.
