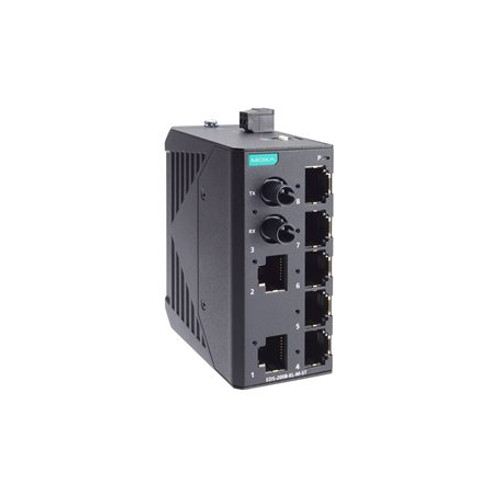

EDS-2008-EL-M-ST

MOXA EDS-2008-EL-M-ST

EDS-2008-EL Series
8-Port Entry-level Unmanaged Switch, 7 Fast TP ports, 1 multi-mode port, ST, -10 to 60°C
Free Ground Shipping on U.S. Orders over $99 $232.75 ON BACKORDER Estimated Availability: 07/31/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-eds-2008-el-series-datasheet-v2.1.pdf
  • 10/100BaseT(X) (RJ45 connector)
  • Compact size for easy installation
  • QoS supported to process critical data in heavy traffic
  • IP40-rated metal housing
  • -40 to 75°C wide operating temperature range (-T models)
  • Compliant with PROFINET Conformance Class A Only for models with hardware version 2.0.0 or later.
View More
Overview Specifications Accessories

Introduction

The EDS-2008-EL series of industrial Ethernet switcheshave up to eight 10/100M copper ports, which are ideal for applicationsthat require simple industrial Ethernet connections. To provide greaterversatility for use with applications from different industries, theEDS-2008-EL Series also allows users to enable or disable the Qualityof Service (QoS) function, and broadcast storm protection (BSP) withDIP switches on the outer panel. In addition, the EDS-2008-EL Serieshas a rugged metal housing to ensure suitability for use in industrialenvironments and fiber connections (Multi-mode SC or ST) can alsobe selected.

TheEDS-2008-EL Series has a 12/24/48 VDC single power input, DIN-railmounting, and high-level EMI/EMC capability. In addition to its compactsize, the EDS-2008-EL Series has passed a 100% burn-in test to ensureit will function reliably after it has been deployed. The EDS-2008-ELSeries has a standard operating temperature range of -10 to 60°C withwide-temperature (-40 to 75°C) models also available.

The EDS-2008-EL Series is also compliant withPROFINET Conformance Class A (CC-A), making these switches suitablefor PROFINET networks.
