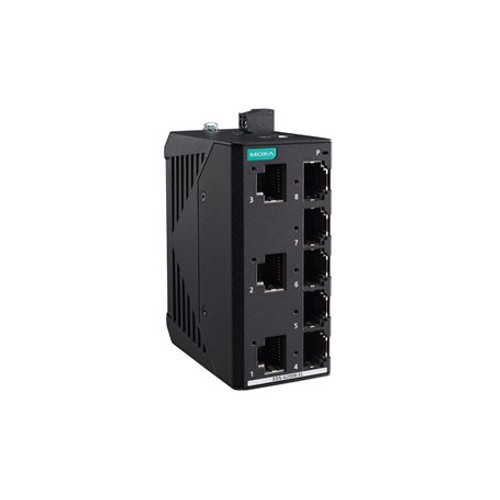

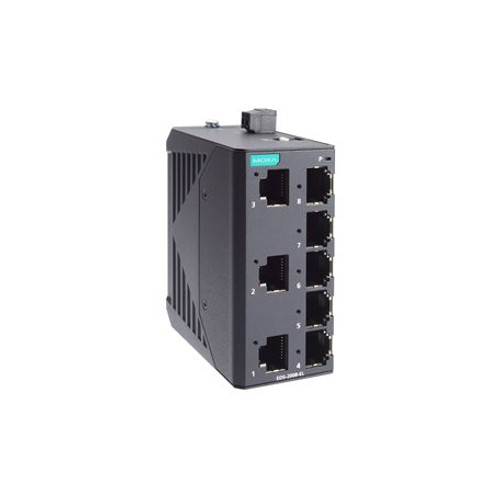

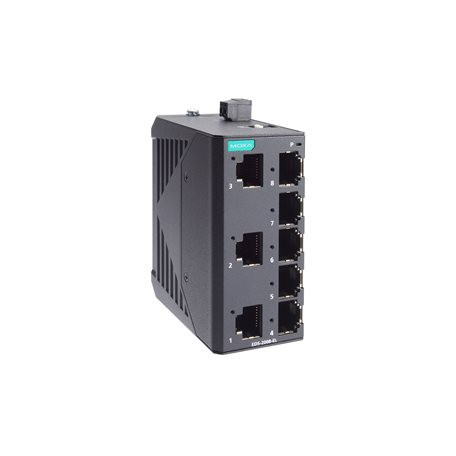

EDS-2008-EL Series

Moxa EDS-2008-EL Series

8-port entry-level unmanaged Ethernet switches with metal housing
EDS-2008-EL Series
Free Ground Shipping on U.S. Orders over $99
VIEW MODELS
 Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-eds-2008-el-series-datasheet-v2.1.pdf
  • 10/100BaseT(X) (RJ45 connector)
  • Compact size for easy installation
  • QoS supported to process critical data in heavy traffic
  • IP40-rated metal housing
  • -40 to 75°C wide operating temperature range (-T models)
View More
Product ID Product Description Availability Price Qty
Overview Specifications Accessories

Introduction

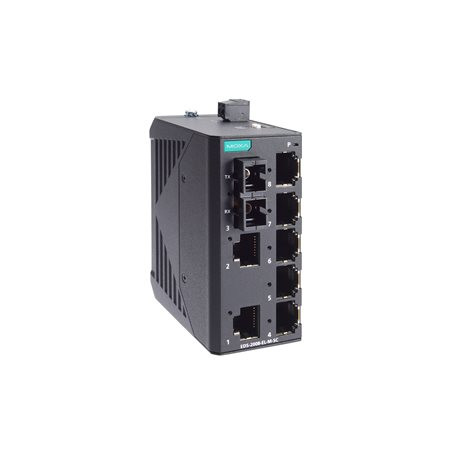

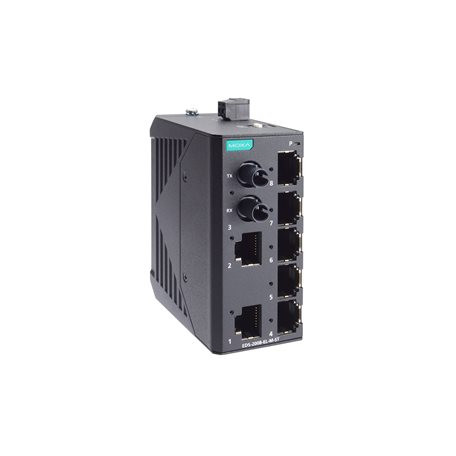

The EDS-2008-EL series of industrial Ethernetswitches have up to eight 10/100M copper ports, which are ideal forapplications that require simple industrial Ethernet connections.To provide greater versatility for use with applications from differentindustries, the EDS-2008-EL Series also allows users to enable ordisable the Quality of Service (QoS) function, and broadcast stormprotection (BSP) with DIP switches on the outer panel. In addition,the EDS-2008-EL Series has a rugged metal housing to ensure suitabilityfor use in industrial environments and fiber connections (Multi-modeSC or ST) can also be selected.

The EDS-2008-EL Series has a 12/24/48VDC single power input, DIN-rail mounting, and high-level EMI/EMCcapability. In addition to its compact size, the EDS-2008-EL Serieshas passed a 100% burn-in test to ensure it will function reliablyafter it has been deployed. The EDS-2008-EL Series has a standardoperating temperature range of -10 to 60°C with wide-temperature (-40to 75°C) models also available.
