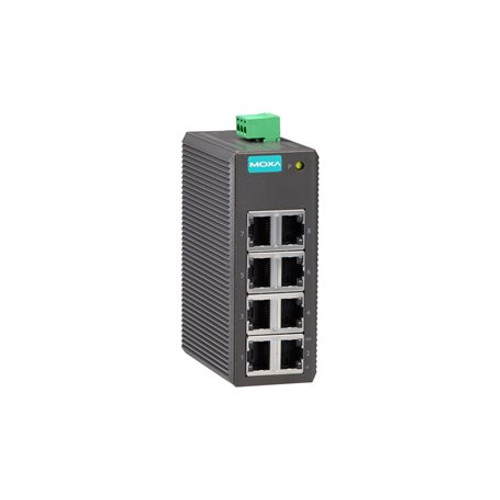

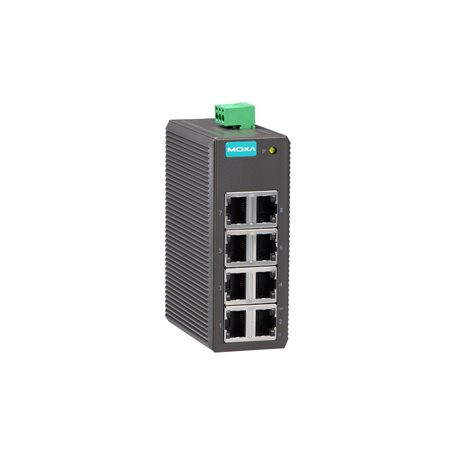

EDS-208 Series

Moxa EDS-208 Series

8-port entry-level unmanaged Ethernet switches
EDS-208 Series
Free Ground Shipping on U.S. Orders over $99
VIEW MODELS
 Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-eds-208-series-datasheet-v1.4.pdf

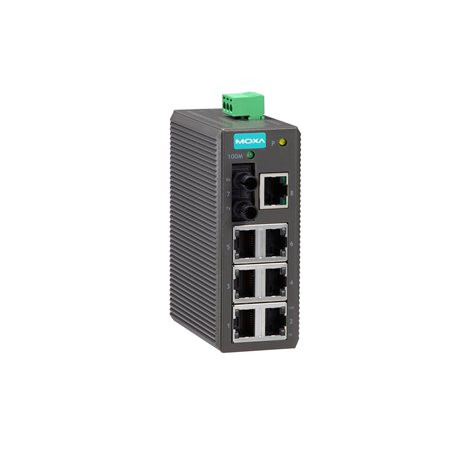

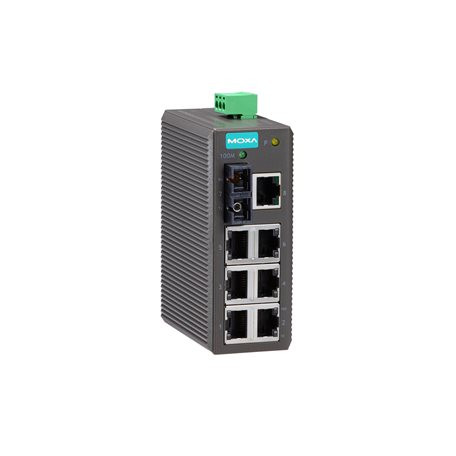

  • 10/100BaseT(X) (RJ45 connector), 100BaseFX (multi-mode, SC/ST connectors)
  • IEEE802.3/802.3u/802.3x support
  • Broadcast storm protection
  • DIN-rail mounting ability
  • -10 to 60°C operating temperature range
View More
Product ID Product Description Availability Price Qty
Overview Specifications Accessories

Introduction

The EDS-208 Series supports IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDIX auto-sensing RJ45 ports. The EDS-208 Series is rated to operate at temperatures ranging from -10 to 60°C, and is rugged enough for any harsh industrial environment. The switches can be easily installed on a DIN rail as well as in distribution boxes. The DIN-rail mounting capability, wide operating temperature capability, and the IP30 housing with LED indicators make the plug-and-play EDS-208 switches easy to use and reliable.
