Introduction

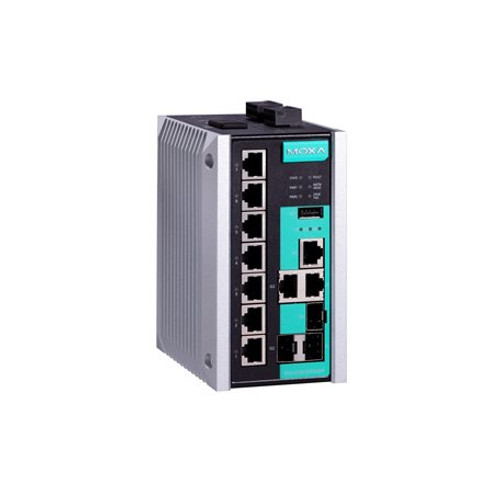

The EDS-510E Gigabit managed Ethernet switches are designed to meet rigorous mission-critical applications, such as factory automation, ITS, and process control. The 3 Gigabit Ethernet ports allow great flexibility to build up a Gigabit redundant Turbo Ring and a Gigabit uplink. The switches have USB interfaces for switch configuration, system file backup, and firmware upgrade, making them easier to manage.

Additional Features and Benefits

• Command line interface (CLI) for quickly configuring major managed functions

• DHCP Option 82 for IP address assignment with different policies

• Supports EtherNet/IP, PROFINET, and Modbus TCP protocols for device management and monitoring

• IGMP snooping and GMRP for filtering multicast traffic

• Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning

• Configurable by web browser, Telnet/USB console, CLI, MXconfig, and ABC-02-USB automatic backup configurator

• QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism

• Port Trunking for optimum bandwidth utilization

• SNMPv1/v2c/v3 for different levels of network management

• RMON for proactive and efficient network monitoring

• Bandwidth management to prevent unpredictable network status

• Lock port function for blocking unauthorized access based on MAC address

• Automatic warning by exception through email and relay output
