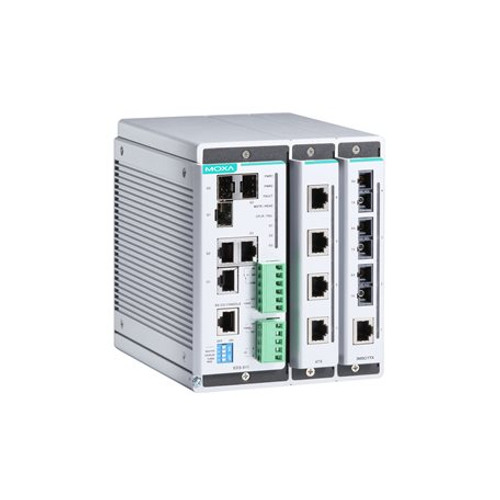

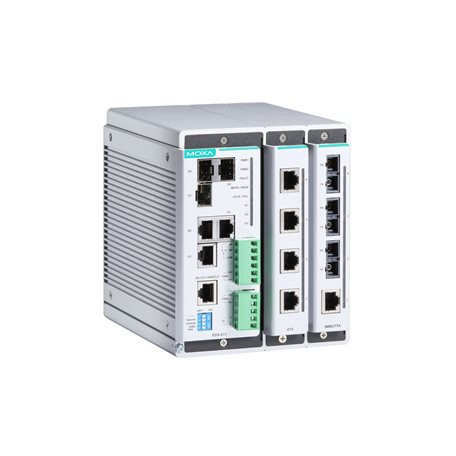

EDS-611-TEDS-611 Series Compact managed Ethernet switch system with 2 slots for 4-port fast Ethernet interface modules, for a total of up to 8+3G ports, -40 to 75°C operating temperature
FREE SHIPPING on orders over $99 $2,670.25
IN STOCK: 0 Units

Please contact us at 888-908-3330 for possible alternatives.

ADD TO CART
Features and Benefits
moxa-eds-611-series-datasheet-v1.5.pdf
  • Modular design with 4-port copper/fiber combinations

  • Hot-swappable media modules for continuous operation

  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches) , and STP/RSTP/MSTP for network redundancy

  • TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security

  • Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01

  • Supports MXstudio for easy, visualized industrial network management

View More
Accessories Overview Specifications

Introduction

The versatile modular design of the compact EDS-611 Series allows users to combine fiber and copper modules to create switch solutions suitable for any automation network. The EDS-611’s modular design lets you install up to 3 Gigabit Ethernet ports and 8 Fast Ethernet ports, and the advanced Turbo Ring and Turbo Chain (recovery time < 20 ms) technology, RSTP/STP, and MSTP help increase the reliability and availability of your industrial Ethernet network.

Models with an extended operating temperature range of -40 to 75°C are also available. The EDS-611 Series supports several reliable and intelligent functions, including EtherNet/IP, Modbus TCP, LLDP, DHCP Option 82, SNMP Inform, QoS, IGMP snooping, VLAN, TACACS+, IEEE 802.1X, HTTPS, SSH, SNMPv3, and more, making the Ethernet switches suitable for any harsh industrial environment.

Additional Features and Benefits

  • Command line interface (CLI) for quickly configuring major managed functions

  • SNMP Inform for ensuring reliable event management

  • LLDP for automated topology discovery

  • DHCP Option 82 for IP address assignment with different policies

  • Supports EtherNet/IP and Modbus TCP protocols for device management and monitoring

  • Compatible with PROFINET protocol for transparent data transmission

  • Lock port function for blocking unauthorized access based on MAC address

  • IGMP snooping and GMRP for filtering multicast traffic

  • Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning

  • QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism

  • Port Trunking for optimum bandwidth utilization

  • SNMPv1/v2c/v3 for different levels of network management

  • RMON for proactive and efficient network monitoring

  • Bandwidth management to prevent unpredictable network status

  • Automatic warning by exception through email and relay output

  • Port mirroring for online debugging
