EDS-G509 Series

Moxa EDS-G509 Series

9G-port full Gigabit managed Ethernet switches
EDS-G509 Series
Free Ground Shipping on U.S. Orders over $99
VIEW MODELS
 Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-eds-g509-series-datasheet-v1.3.pdf
  • 4 10/100/1000BaseT(X) ports plus 5 combo (10/100/1000BaseT(X) or 100/1000BaseSFP slot) Gigabit ports
  • Enhanced surge protection for serial, LAN, and power
  • TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
  • Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
  • Supports MXstudio for easy, visualized industrial network management
View More
Product ID Product Description Availability Price Qty
Overview Specifications Accessories

Introduction

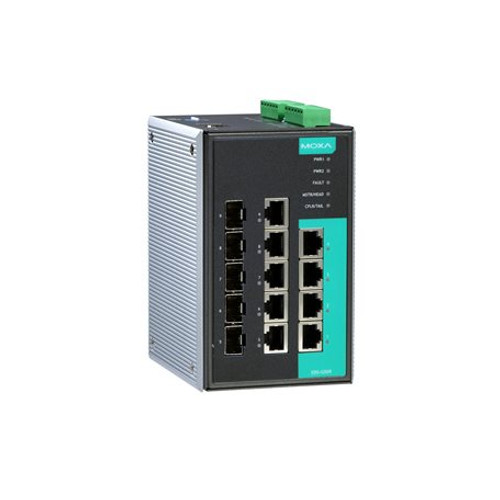

The EDS-G509 Series is equipped with 9 Gigabit Ethernet ports and up to 5 fiber-optic ports, making it ideal for upgrading an existing network to Gigabit speed or building a new full Gigabit backbone. Gigabit transmission increases bandwidth for higher performance and transfers large amounts of video, voice, and data across a network quickly.

Redundant Ethernet technologies Turbo Ring, Turbo Chain, RSTP/STP, and MSTP increase system reliability and the availability of your network backbone. The EDS-G509 Series is designed especially for communication demanding applications, such as video and process monitoring, shipbuilding, ITS, and DCS systems, all of which can benefit from a scalable backbone construction.

Additional Features and Benefits

  • Command line interface (CLI) for quickly configuring major managed functions

  • DHCP Option 82 for IP address assignment with different policies

  • Supports EtherNet/IP and Modbus TCP protocols for device management and monitoring

  • Compatible with PROFINET protocol for transparent data transmission

  • IGMP snooping and GMRP for filtering multicast traffic

  • Compatible with the ABC-01 (Automatic Backup Configurator) for system configuration backup

  • Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning

  • QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism

  • Port Trunking for optimum bandwidth utilization

  • SNMPv1/v2c/v3 for different levels of network management

  • RMON for proactive and efficient network monitoring

  • Bandwidth management to prevent unpredictable network status

  • Lock port function for blocking unauthorized access based on MAC address

  • Port mirroring for online debugging

  • Automatic warning by exception through email and relay output
