EXPC-F2120W Series

MOXA EXPC-F2120W Series

12.1" fanless industrial panel computer with 11th Gen Intel® Core™ i processors, wide -40 to 70°C operation, and a 1200-nit sunlight-readable, glove-friendly multi-touch display, engineered for reliable use in harsh, hazardous, and outdoor enviro
Image of EXPC-F2120W Series
VIEW MODELS
Exclusive Bulk Pricing on Select Products
Sign Up to Access.

Features and Benefits

moxa-expc-f2120w-series-datasheet-v1.2.pdf
  • 12.1 inch 16:10 display
  • High-performance Tiger Lake Intel® Core™ i7/ Core™ i3 or Intel® Celeron® processor
  • Built-in light sensor for auto brightness control
  • 1200-nit sunlight-readable anti-glare display
  • Optical bonding of the display for deploying in harsh environments
  • Fanless thermal design for efficient heat dissipation in high-temperature environments
  • UL C1D2/C2D2, ATEX, and IECEx ZONE 2/Zone 22 certified
  • Front IP66 and rear IP42 certified
  • -40 to 70°C operating temperature range
  • Options for 5G and Wi-Fi 6 connections
  • Designed for deploying in hazardous locations and for mission-critical applications
View More

Product ID Product Description Availability Price Qty
Overview Specifications Accessories

Introduction

The EXPC-F2120W Series consists of 12.1-inch panel PCs with a 11thGen Intel Core™ i processor that deliver a reliable, durable, andversatile platform for use in industrial, hazardous, and mission-criticalenvironments. The EXPC-F2120W panel PCs come with a rich set of communicationinterfaces to satisfy all your industrial-application scenarios. Thepanel PCs are also provided with a DisplayPort and VGA video outputsfor extending the display.

The EXPC-F2120W panel PCs come in a fanless design for operationsin the -40 to 70°C temperature range and a streamlined enclosure forefficient heat dissipation, making them the most reliable industrialplatforms available for harsh, hot, outdoor environments such as oiland gas fields, drilling platforms, and power stations, as well assmart heater solutions. The panel PCs are also specifically designedwith sunlight-readable features such as a 1200-nit LCD panel, projected-capacitive,glove-friendly, multi-touch screen, optical bonding, and anti-glaredesign, to provide an excellent user experience for outdoor applications.

Appearance

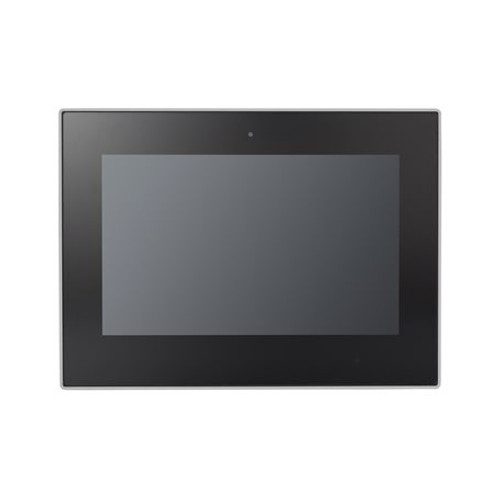

Front View

Bottom View

ModelsWith AC Power Input

Models With DC Power Input

Side View
