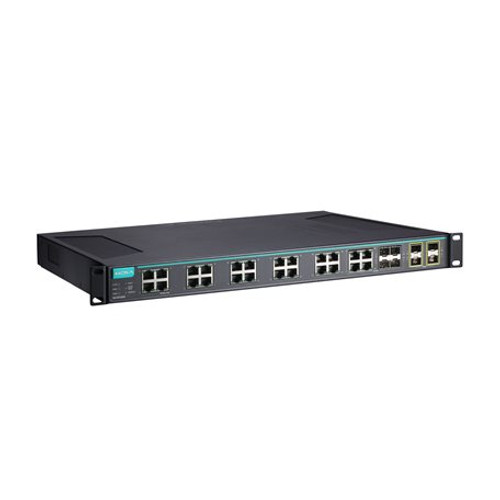

ICS-G7528A Series 24G+4 10GbE-port Layer 2 full Gigabit managed Ethernet switches
Features and Benefits
moxa-ics-g7528a-series-datasheet-v1.6.pdf
  • 24 Gigabit Ethernet ports plus up to 4 10G Ethernet ports

  • Up to 28 optical fiber connections (SFP slots)

  • Fanless, -40 to 75°C operating temperature range (T models)

  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches) , and STP/RSTP/MSTP for network redundancy

  • Isolated redundant power inputs with universal 110/220 VAC power supply range

  • Supports MXstudio for easy, visualized industrial network management

  • V-ON™ ensures millisecond-level multicast data and video network recovery

View More
Product ID Product Description Availability Price Qty
ICS-G7528A Series $0
ADD TO CART
Accessories Overview Specifications

Introduction

Process automation and transportation automation applications combine data, voice, and video, and consequently require high performance and high reliability. The ICS-G7528A Series full Gigabit backbone switches are equipped with 24 Gigabit Ethernet ports plus up to 4 10 Gigabit Ethernet ports, making them ideal for large-scale industrial networks.

The ICS-G7528A’s full Gigabit capability increases bandwidth to provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. The fanless switches support the Turbo Ring, Turbo Chain, and RSTP/STP redundancy technologies, and come with an isolated redundant power supply to increase system reliability and the availability of your network backbone.

Additional Features and Benefits

  • Command line interface (CLI) for quickly configuring major managed functions

  • DHCP Option 82 for IP address assignment with different policies

  • Supports EtherNet/IP, PROFINET, and Modbus TCP protocols for device management and monitoring

  • IGMP snooping and GMRP for filtering multicast traffic

  • IEEE 802.1Q VLAN and GVRP protocol to ease network planning

  • QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism

  • Automatic warning by exception through email and relay output

  • Digital inputs for integrating sensors and alarms with IP networks

  • Port Trunking for optimum bandwidth utilization

  • TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security

  • Access control lists (ACL) increase the flexibility and security of network management (ICS-G7800A Series)

  • SNMPv1/v2c/v3 for different levels of network management

  • RMON for proactive and efficient network monitoring

  • Bandwidth management to prevent unpredictable network status

  • Lock port function for blocking unauthorized access based on MAC address

  • Port mirroring for online debugging

  • Redundant, dual AC power inputs
