IMC-101-M-ST-T

Moxa IMC-101-M-ST-T

IMC-101 Series
Industrial 10/100BaseT(X )to 100BaseFX media converter, multi mode, ST fiber connector, -40 to 75°C

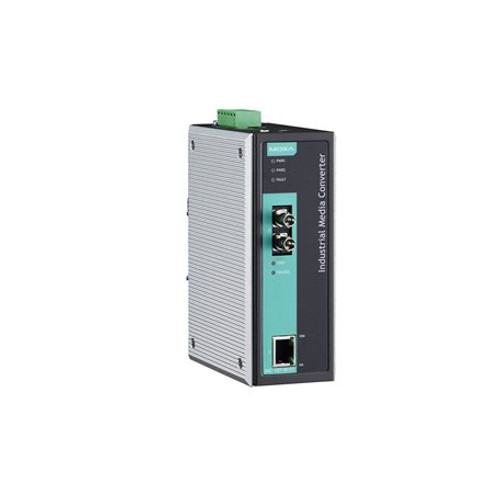

Image of IMC-101-M-ST-T
Free Ground Shipping on U.S. Orders over $99 $329.13 IN STOCK: 0 Units

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-imc-101-series-datasheet-v1.7.pdf
  • 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
  • Link Fault Pass-Through (LFPT)
  • Power failure, port break alarm by relay output
  • Redundant power inputs
  • -40 to 75°C operating temperature range (-T models)
  • Designed for hazardous locations (Class 1 Div. 2/Zone 2, IECEx)
View More
Overview Specifications Accessories

Introduction

The IMC-101 industrial media converters provide industrial-grade media conversion between 10/100BaseT(X) and 100BaseFX (SC/ST connectors). The IMC-101 converters’ reliable industrial design is excellent for keeping your industrial automation applications running continuously, and each IMC-101 converter comes with a relay output warning alarm to help prevent damage and loss. The IMC-101 media converters are designed for harsh industrial environments, such as in hazardous locations (Class 1, Division 2/Zone 2, IECEx, DNV, and GL Certification), and comply with FCC, UL, and CE standards. Models in the IMC-101 Series support an operating temperature from 0 to 60°C, and an extended operating temperature from -40 to 75°C. All IMC-101 converters are subjected to a 100% burn-in test.
