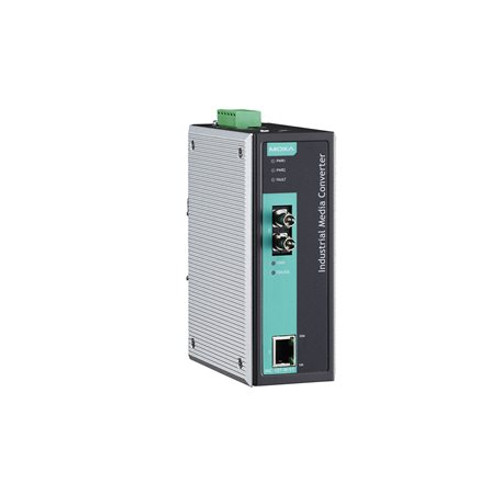

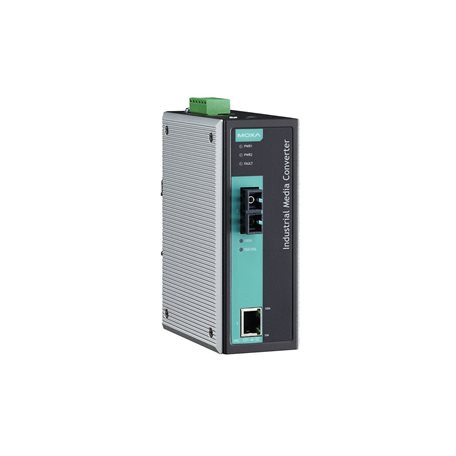

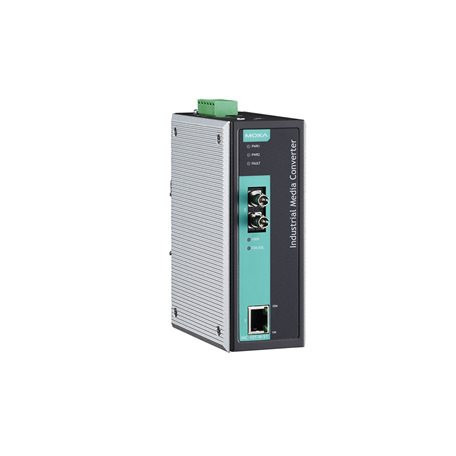

MOXA IMC-101-M-ST
IMC-101 SeriesFeatures and Benefits
- 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
- Link Fault Pass-Through (LFPT)
- Power failure, port break alarm by relay output
- Redundant power inputs
- -40 to 75°C wide operating temperature range (-T models)
- Designed for hazardous locations (Class 1 Div. 2/Zone 2, IECEx)
Introduction
The IMC-101 industrial media converters provide industrial-grademedia conversion between 10/100BaseT(X) and 100BaseFX (SC/ST connectors).The IMC-101 converters’ reliable industrial design is excellent forkeeping your industrial automation applications running continuously,and each IMC-101 converter comes with a relay output warning alarmto help prevent damage and loss. The IMC-101 media converters aredesigned for harsh industrial environments, such as in hazardous locations(Class 1, Division 2/Zone 2, IECEx), come with the DNV certification,and comply with FCC, UL, and CE standards. Models in the IMC-101 Seriessupport an operating temperature from 0 to 60°C, and an extended operatingtemperature from -40 to 75°C. All IMC-101 converters are subjectedto a 100% burn-in test.
