IMC-P21GA-G2 Series

IMC-P21GA-G2 Series

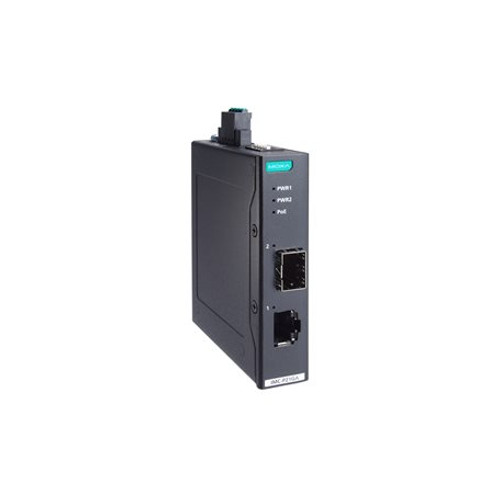

Image of IMC-P21GA-G2 Series
VIEW MODELS
Exclusive Bulk Pricing on Select Products
Sign Up to Access.

Features and Benefits

moxa-imc-p21ga-g2-series-datasheet-v2.0.pdf
  • 10/100/1000BaseT(X) auto-negotiation and auto-MDI/MDI-X
  • IEEE 802.3af (PoE) and IEEE 802.3at (PoE+) standard compliance
  • Up to 36 W output on the PoE+ port
  • Supports store-and-forward mode and pass-through mode
  • Supports 16 KB jumbo frames
  • Redundant dual DC power inputs
View More

Product ID Product Description Availability Price Qty
Overview Specifications Accessories

Introduction

IMC-P21GA-G2 PoE+ Gigabit Ethernet-to-fiber media converters aredesigned to provide reliable and stable 10/100/1000BaseT(X)-to-100/1000Base-SX/LX or selected 100/1000Base SFP module media conversions.These converters are classified as power source equipment (PSE) andare used to directly power up powered devices (PDs), eliminating theneed for additional wiring.

The IMC-P21GA-G2 PoE+ Gigabit Ethernet-to-fiber media convertersprovide up to 30 watts of power on the PoE+ port in standard modeand allow high-power output of up to 36 watts for heavy-duty industrialPoE devices, such as weather-proof IP surveillance cameras with wipers/heaters,high-performance wireless access points, and IP phones. The IMC-P21GA-G2media converters are highly versatile, and with SFP fiber ports, cantransmit data high EMI immunity for up to 80 km from the device tothe control center.

ThePoE+ Gigabit Ethernet-to-fiber media converters support a varietyof useful functions, as well as jumbo frames, PoE diagnostics, LinkFault Pass-through, store-and-forward mode, and pass-through mode.The IMC-P21GA-G2 converters support IEEE 802.3/802.3u/802.3x with10/100/1000M and MDI/ MDI-X auto-sensing, providing a complete solutionfor your industrial Ethernet networks.
