INJ-24

MOXA INJ-24

INJ-24 Series
PoE+ Injector, maximum output of 30 W at 24/48 VDC, 0 to 60°C operating temperature

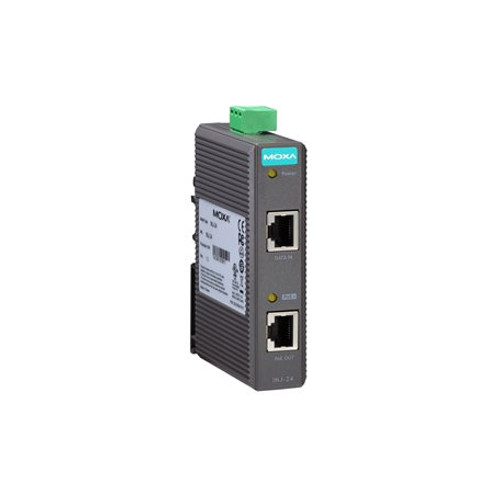

Image of INJ-24
ADD TO CART
$345.27
In Stock 236 Units
Need it on next buniness day? Choose 1-Day Shipping Before 4:00 p.m. E.S.T at checkout.
Exclusive Bulk Pricing on Select Products
Sign Up to Access.

Features and Benefits

moxa-inj-24-series-inj-24-pcba-2d-cad.zip moxa-inj-24-series-datasheet-v1.1.pdf
  • PoE+ injector for 10/100/1000M networks; injects power and sends data to PDs (power devices)
  • IEEE 802.3af/at compliant; supports a full 30 watt output
  • 24/48 VDC wide range power input
  • -40 to 75°C operating temperature range (-T model)
View More

Overview Specifications Accessories

Introduction

The INJ-24 is a Gigabit IEEE 802.3at PoE+ injector that combines power and data and delivers them to a powered device over one Ethernet cable. Designed for use with power-hungry devices, the INJ-24 injector provides PoE of up to 30 watts. The -40 to 75°C (-40 to 167°F) operating temperature capability makes the INJ-24 ideally suited to operating in harsh industrial environments.
