MC-3201 Series

MOXA MC-3201 Series

Compact computers with 11th Gen Intel® Core™ processor, designed for IIoT, AI, and marine applications, -20 to 55°C operating temperature
Free Ground Shipping on U.S. Orders over $99
VIEW MODELS
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-mc-3201-series-datasheet-v2.1.pdf
  • 11th Gen Intel® Core™ processor (Tiger Lake U)
  • 2 built-in DDR4 memory slots; total capacity up to 32 GB
  • Variety of interfaces: 2 serial ports, 4 Giga LAN ports, 2 USB 3.1 (type A) ports, and 4 USB 2.0 (type A) ports
  • Built-in TPM 2.0 module
  • Complies with DNV, IEC-60945, and IACS E10 standards
View More
Product ID Product Description Availability Price Qty
Overview Specifications Accessories

Introduction

The MC-3201Series computers are built around a 11th Gen Intel® Celeron® or Intel®Core™ i3, i5, or i7 processor and come with 2 DisplayPort interfaces,2 USB 3.1 ports, 4 GbE ports, and 2 3-in-1 RS-232/422/485 serial ports.The computers are also equipped with a 2.5-inch SSD/HDD slot and abuilt-in TPM 2.0 module.

Compliance withthe DNV, IEC-60945, and IACS E10 standards ensures the MC-3201 deliversstable and reliable system operations for marine and IIoT applications.These certifications are issued to indicate the suitability of productfor use in marine applications.

ProactiveMonitoring Function

Moxa Proactive Monitoring is a small-footprint, resource-friendly,easy-to-use utility available with some Moxa computers to track anumber of system parameters. You can view the current values for keyparts by simply clicking on the icons corresponding to the parametersin a Windows-based user interface. User-defined key part indicators(KPIs) are used to monitor the computer’s key parts. Visible and/oraudio alerts are triggered automatically via relays and SNMP trapswhen these KPIs exceed their preset threshold values, making it extremelyconvenient for operators to avoid system downtime by setting up predictivemaintenance tasks well in advance.

The Proactive Monitoring tool is currently availablewith DA-720 Series, DA-820C Series, MC-1200 Series, MC-3201 Series,and MC-7400 Series.

Appearance

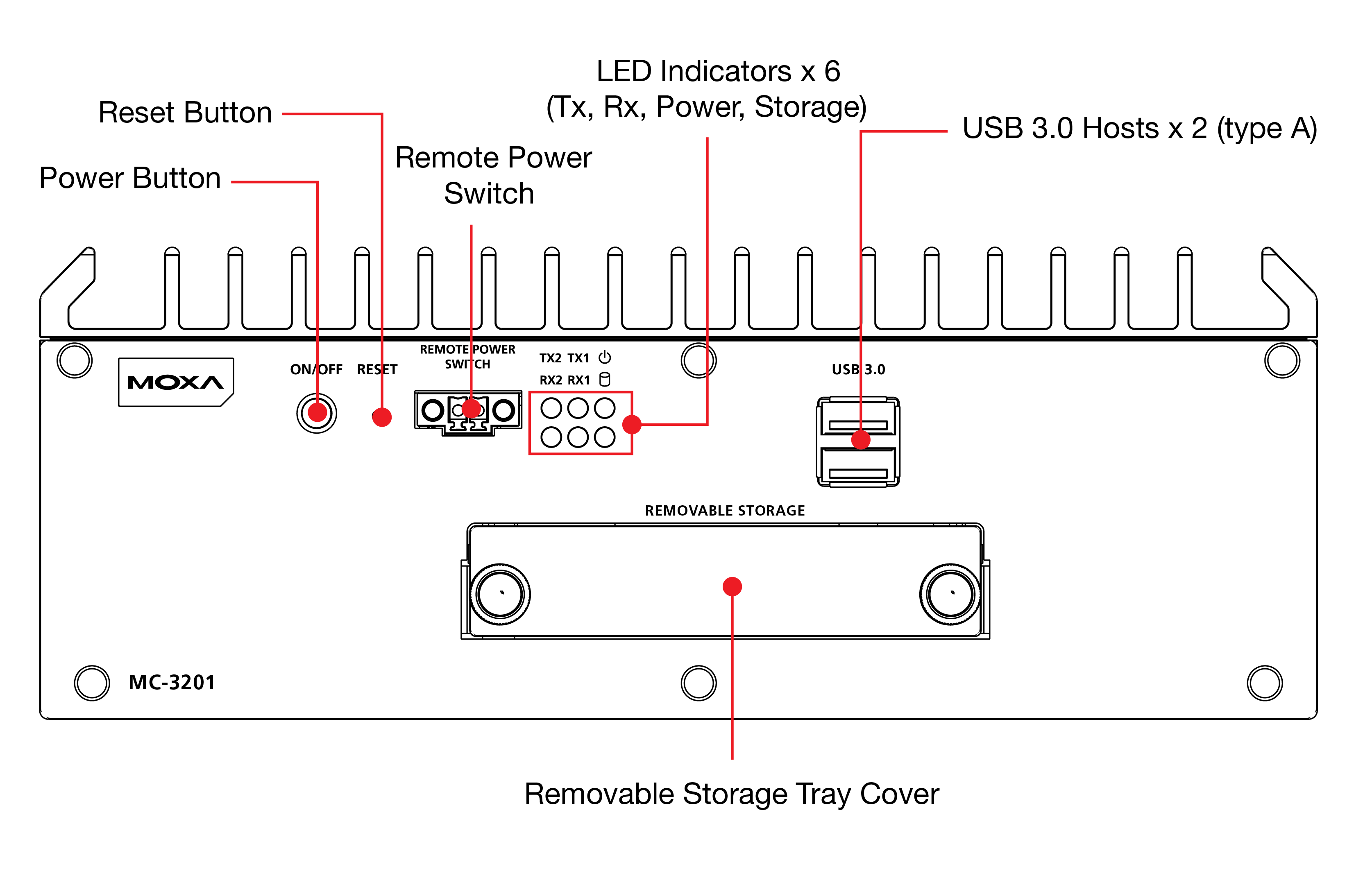

Front Panel (S-S models)

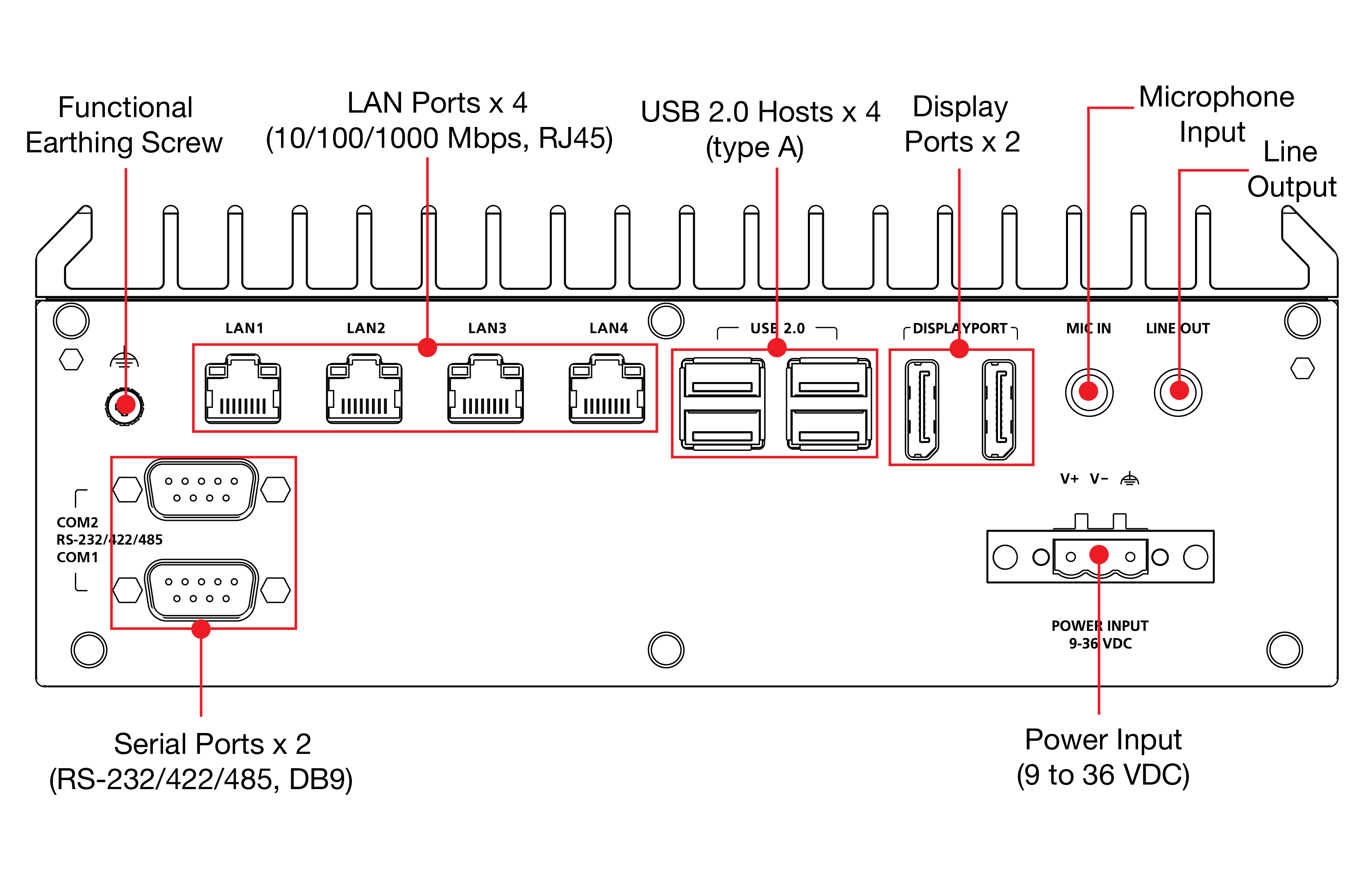

Rear Panel (S-S models)

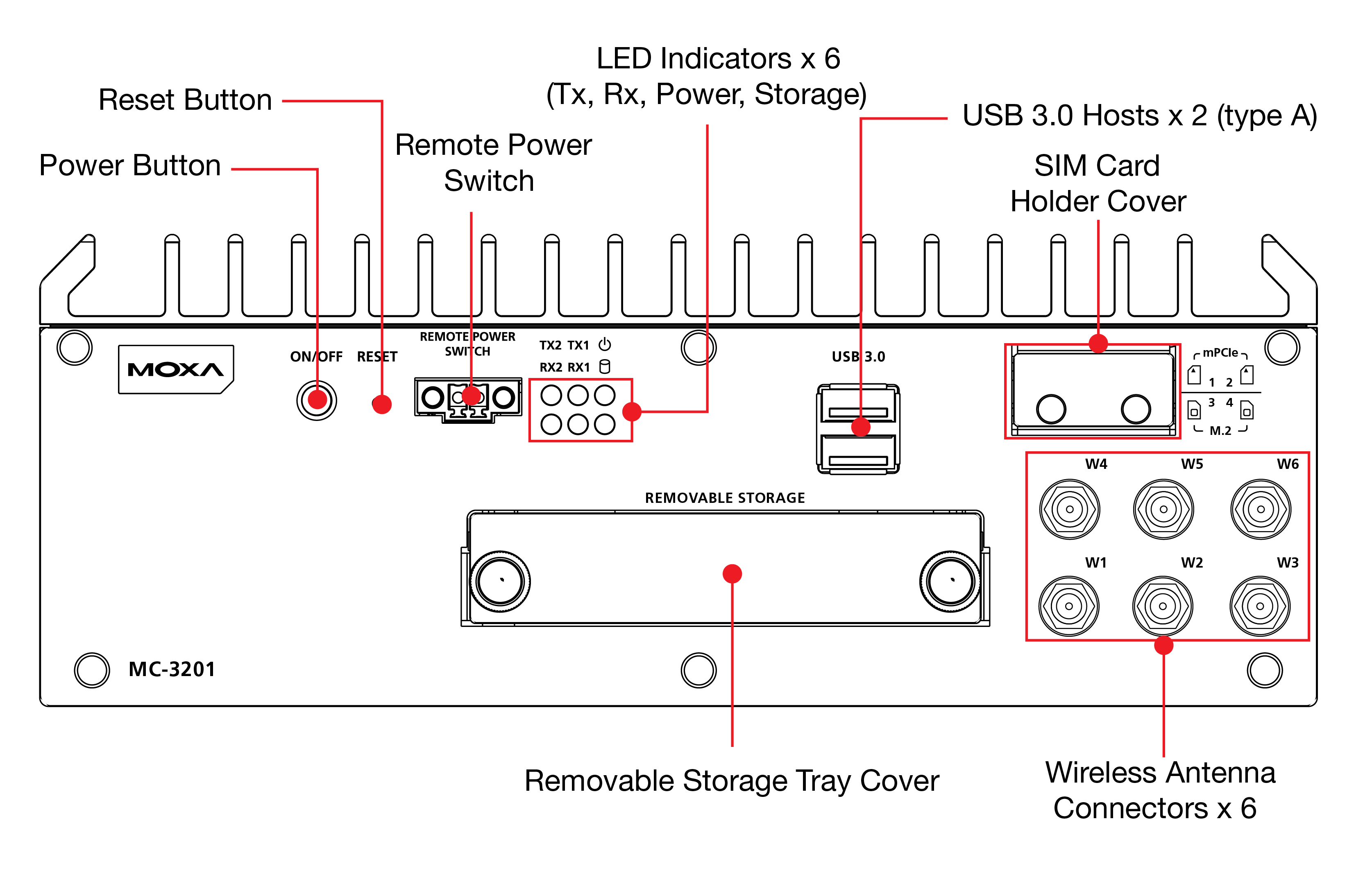

Front Panel (M-S models)

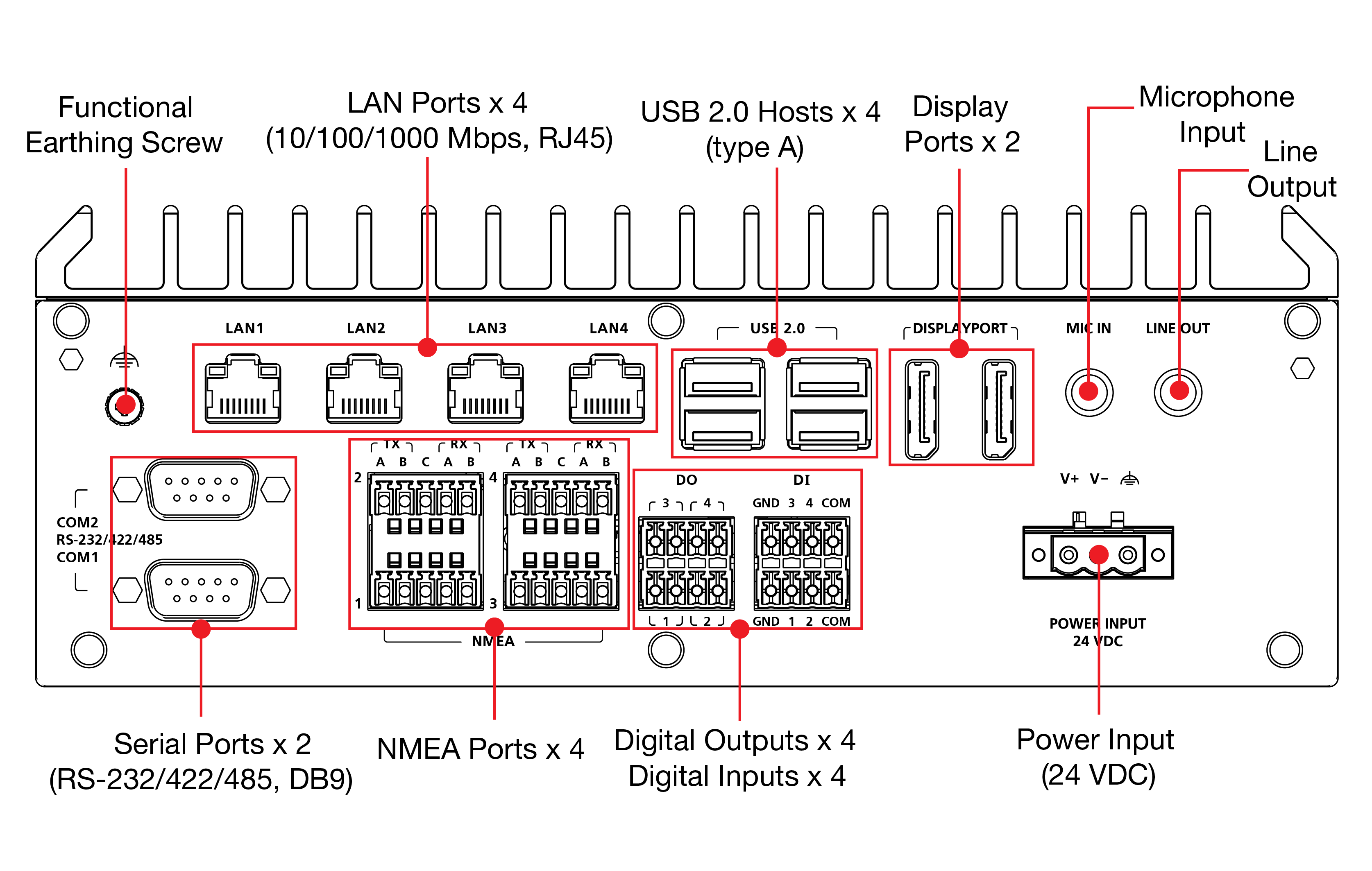

Rear Panel (M-S models)
