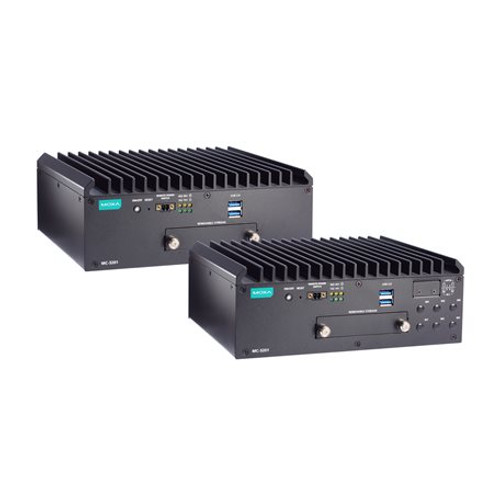

MC-3201-TGL5-M-S

MC-3201 Series

MC-3201-TGL5-M-S ; x86 computer with Intel Core i5-1145G7E CPU,4xGbE,2x3-in-1 serial ports,4xNMEA,2xDP,4xUSB2.0,2xUSB3.0,Internal slot(M.2 B keyx1,E keyx1,mPCIEx1),External slot (SSDx1),4xDI/4xDO,Audio in/out,IEC 60945/E10 , 24VDC, -20 to 55°C

Free Ground Shipping on U.S. Orders over $99 $2,846.55 IN STOCK: 0 Units

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART

Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-mc-3201-series-datasheet-v2.0.pdf

11th Gen Intel® Core™ processor (Tiger Lake U)
2 built-in DDR4 memory slots; total capacity up to 32 GB
M.2 B key socket for 5G, GPS, and M.2 SATA SSD expansion modules
M.2 E key socket for Wi-Fi and BT expansion modules
Variety of interfaces: 2 serial ports, 4 Giga LAN ports, 2 USB 3.1 (type A) ports, and 4 USB 2.0 (type A) ports
Built-in TPM 2.0 module
Complies with IEC-60945 and IACS E10 standards

Accessories Overview Specifications

Introduction

The MC-3201Series computers are built around a 11th Gen Intel® Celeron® or Intel®Core™ i3, i5, or i7 processor and come with 2 DisplayPort interfaces,2 USB 3.1 ports, 4 GbE ports, and 2 3-in-1 RS-232/422/485 serial ports.The computers are also equipped with a 2.5-inch SSD/HDD slot and abuilt-in TPM 2.0 module.

Additional valueand convenience are provided through a modular design with two independentslots for flexible system integration and expansion. Users have theoption to add a variety of different communications modules, includingWi-Fi, 5G, LTE, GPS, and M.2 SATA SSD expansion modules.

Compliance with the IEC-60945 and IACS E10 standardsensures the MC-3201 delivers stable and reliable system operationsfor marine and IIoT applications. These certifications are issuedto indicate the suitability of product for use in marine applications.

ProactiveMonitoring Function

Moxa Proactive Monitoring is a small-footprint, resource-friendly,easy-to-use utility available with some Moxa computers to track anumber of system parameters. You can view the current values for keyparts by simply clicking on the icons corresponding to the parametersin a Windows-based user interface. User-defined key part indicators(KPIs) are used to monitor the computer’s key parts. Visible and/oraudio alerts are triggered automatically via relays and SNMP trapswhen these KPIs exceed their preset threshold values, making it extremelyconvenient for operators to avoid system downtime by setting up predictivemaintenance tasks well in advance.

The Proactive Monitoring tool is currently availablewith DA-720 Series, DA-820C Series, MC-1200 Series, MC-3201 Series,and MC-7400 Series.
