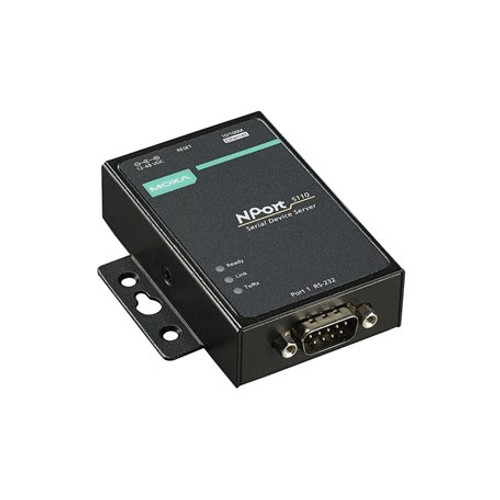

NPort 5110-T

NPort 5110-T

NPort 5100 Series
1 port device server, 10/100M Ethernet, RS-232, DB9 male, 12-48VDC, -40~75℃, (power adapter is not included)
Free Ground Shipping on U.S. Orders over $99 $208.65 IN STOCK: 23 Units
Need it on next buniness day? Choose 1-Day Shipping Before 4:00 p.m. E.S.T at checkout.
ADD TO CART

Features and Benefits

moxa-nport-5100-series-datasheet-v2.0.pdf
  • Small size for easy installation
  • Real COM and TTY drivers for Windows, Linux, and macOS
  • Standard TCP/IP interface and versatile operation modes
  • Easy-to-use Windows utility for configuring multiple device servers
  • SNMP MIB-II for network management
  • Configure by Telnet, web browser, or Windows utility
  • Adjustable pull high/low resistor for RS-485 ports
View More
Accessories Overview Specifications

Introduction

NPort® 5100 device servers are designed to makeserial devices network-ready in an instant. The small size of theservers makes them ideal for connecting devices such as card readersand payment terminals to an IP-based Ethernet LAN. Use the NPort 5100device servers to give your PC software direct access to serial devicesfrom anywhere on the network.

Most Cost-effective Serial-to-Ethernet Solution

Using serial device servers to connect legacyserial devices to Ethernet is now commonplace, and users expect deviceservers to be cost-effective and to provide a broad selection of usefulfunctions. With its full support of Microsoft and Linux operatingsystems and solid 5-year warranty, the NPort® 5100 Series providesthe best choice for serial-to-Ethernet converters.

Adjustable Termination and Pull High/Low Resistors

In some critical environments, termination resistors may be needed to prevent the reflection of serial signals. When using termination resistors, it is also important to set the pull high/low resistors correctly so that the electrical signal is not corrupted. Since no set of resistor values is universally compatible with all environments, the NPort® 5100 device servers come with jumpers for adjusting termination and pull high/low resistor values for each serial port.

Standard TCP/IP Interface and Broad Choice of Operation Modes

The NPort® 5100 device servers can be configured for TCP Server, TCP Client, UDP Server/Client, Pair Connection, or Ethernet Modem mode, ensuring compatibility with software based on a standard network API (e.g., Winsock or BSD Sockets).

Real COM/TTY Drivers for Existing Software

The Real COM/TTY drivers provided with the NPort® 5100 device servers allow you to continue using software designed for communicating through COM/TTY ports. Installation and configuration are painless, and allows your serial devices and PC to communicate seamlessly over a TCP/IP network. Using Moxa’s Real COM/TTY drivers is an excellent way to preserve your software investment while still allowing you to enjoy the benefits of networking your serial devices.

Easy to Troubleshoot

NPort® 5100 device servers support SNMP, which can be used to monitor all units over Ethernet. Each unit can be configured to send trap messages automatically to the SNMP manager when user-defined errors are encountered. For users who do not use SNMP manager, an email alert can be sent instead. Users can define the trigger for the alerts using Moxa’s Windows utility, or the web console. For example, alerts can be triggered by a warm start, a cold start, or a change in password.
