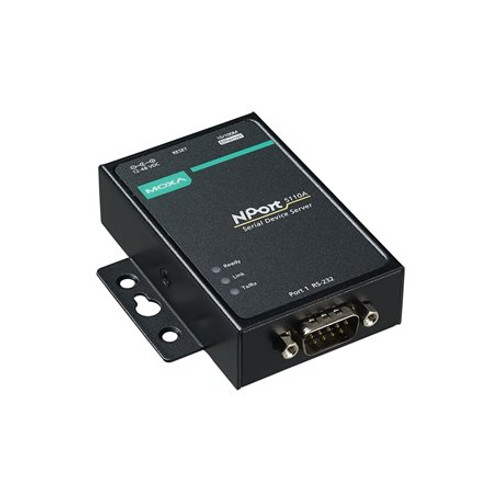

NPort 5110A

Moxa NPort 5110A

NPort 5100A Series
1 port device server, 10/100M Ethernet, RS-232, DB9 male, 0.5KV serial surge, 12~48VDC, 0~60°C
Free Ground Shipping on U.S. Orders over $99 $161.04 IN STOCK: 46 Units ON ORDER: 1091 Units
Need it on next buniness day? Choose 1-Day Shipping Before 4:00 p.m. E.S.T at checkout.
ADD TO CART

Features and Benefits

moxa-nport-5100a-series-datasheet-v2.0.pdf
  • Power consumption of only 1 W
  • Fast 3-step web-based configuration
  • Surge protection for serial, Ethernet, and power
  • COM port grouping and UDP multicast applications
  • Screw-type power connectors for secure installation
  • Real COM and TTY drivers for Windows, Linux, and macOS
  • Standard TCP/IP interface and versatile TCP and UDP operation modes
  • Connects up to 8 TCP hosts
View More
Overview Specifications Accessories

Introduction

The NPort® 5100A device servers are designed to make serial devices network-ready in an instant and give your PC software direct access to serial devices from anywhere on the network. The NPort® 5100A device servers are ultra-lean, ruggedized, and user-friendly, making simple and reliable serial-to-Ethernet solutions possible.

A Greener Serial-to-Ethernet Solution

The MiiNe is a small but powerful Arm-based serial-to-Ethernet SoC with RAM and Flash embedded. With the MiiNe inside, the NPort® 5110A Series' power consumption is less than 1 W. The NPort® 5100A Series saves at least 50% on power consumption compared to existing solutions on the market, helping engineers meet the tough environmental compliance challenges found in today’s industrial environments.

Surge Protection for Serial, Ethernet, and Power

Surge, which is typically caused by high voltages that result from switching and lightning transients, is a common threat to all electrical devices. Moxa’s leading-edge surge immunity solution, which is applied to the NPort® 5100A’s serial, power, and Ethernet lines, is tested and proven compliant with IEC 61000-4-5. This state-of-the-art surge protection provides a robust serial-to-Ethernet solution that can protect electrical devices from voltage spikes and withstand electrically noisy environmental conditions.

3-Step Web-based Configuration

The NPort® 5100A’s 3-step web-based configurationtool is straightforward and user-friendly. The NPort® 5100A’s webconsole guides users through three simple configuration steps thatare necessary to activate the serial-to-Ethernet application. Withthis fast 3-step web-based configuration, a user only needs to spendan average of 30 seconds to complete the NPort® settings and enablethe application, saving a great amount of time and effort.

Easy to Troubleshoot

NPort® 5100A device servers support SNMP, which can be used to monitor all units over Ethernet. Each unit can be configured to send trap messages automatically to the SNMP manager when user-defined errors are encountered. For users who do not use SNMP manager, an email alert can be sent instead. Users can define the trigger for the alerts using Moxa’s Windows utility, or the web console. For example, alerts can be triggered by a warm start, a cold start, or a password change.

Appearance
