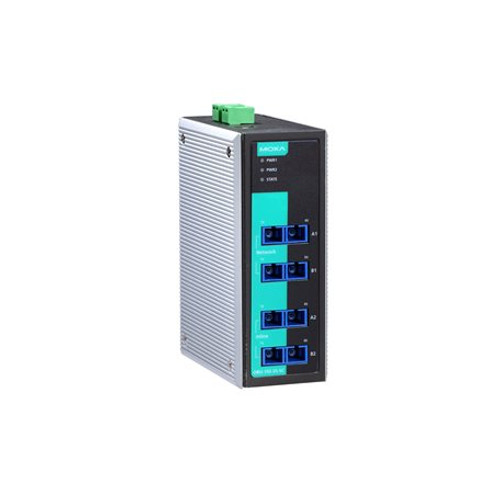

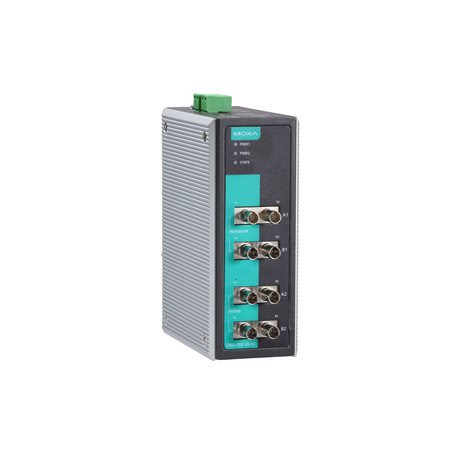

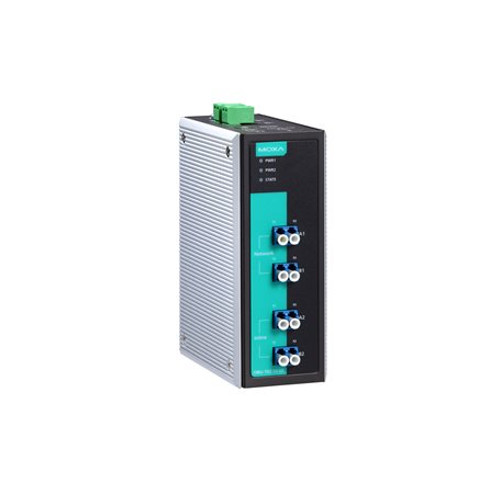

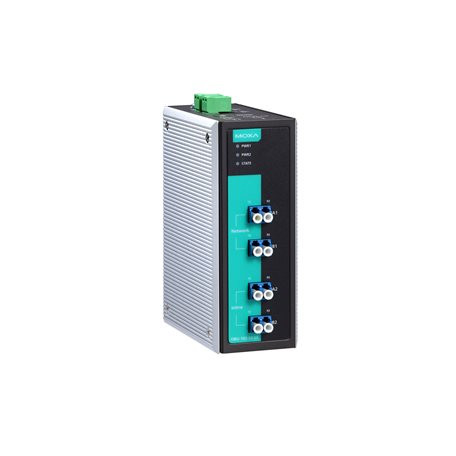

OBU-102 Series 2-channel optical fiber bypass units
Features and Benefits
moxa-obu-102-series-datasheet-v1.0.pdf
  • Supports Fast, Gigabit, and 10 Gigabit Ethernet fiber connections in SC/ST/LC connectors

  • Redundant dual 12/24/48 VDC power inputs

  • IP30 metal housing

  • -20 to 70°C operating temperature range

  • DIN-rail mounting ability

  • Ultra-low power consumption 0.72 W

View More
Product ID Product Description Availability Price Qty
OBU-102 Series $0
ADD TO CART
Accessories Overview Specifications

Introduction

Moxa’s OBU-102 fiber-optic bypass units add bypass relay functionality to any network node. In linear topologies, a single power outage or node failure can take out an entire chunk of the network, because communications to all the network nodes further down the line are also cut. With relay bypass, that node is bypassed in the event of a failure, and the rest of the network is unaffected.

Bypass Relay Functionality

The OBU-102 Series sits between a node and the network to add bypass relay functionality to any network switches that do not already support this important function. In normal operations, the OBU-102 Series acts as a gateway that forwards network traffic to and from the network switch. However, if power is lost, the OBU-102 will bypass the unpowered switch and simply pass network traffic to the next switch in the relay.
