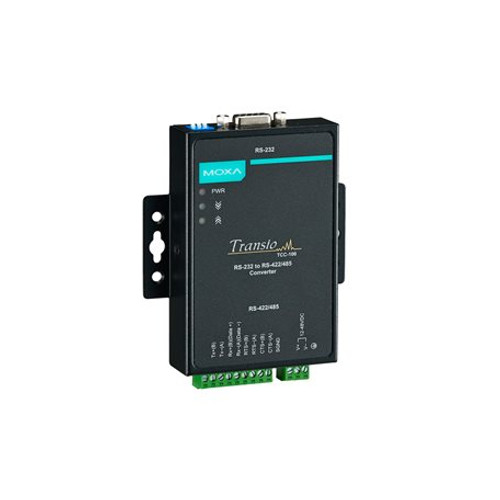

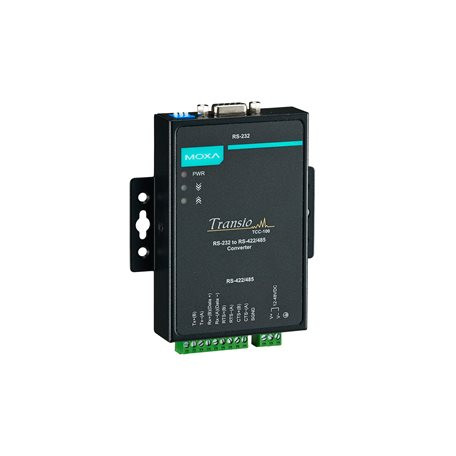

TCC-100/100I Series

TCC-100/100I Series

Industrial RS-232 to RS-422/485 converters with optional 2 kV isolation
TCC-100/100I Series
Free Ground Shipping on U.S. Orders over $99
VIEW MODELS
 Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-tcc-100-100i-series-datasheet-v1.3.pdf
  • RS-232 to RS-422 conversion with RTS/CTS support
  • RS-232 to 2-wire or 4-wire RS-485 conversion
  • 2 kV isolation protection (TCC-100I)
  • Wall mounting and DIN-rail mounting
  • Plug-in terminal block for easy RS-422/485 wiring
  • LED indicators for power, Tx, Rx
  • Wide-temperature model available for -40 to 85°C environments
View More
Product ID Product Description Availability Price Qty
TCC-100/100I Series $0
ADD TO CART
Accessories Overview Specifications

Introduction

The TCC-100/100I Series of RS-232 to RS-422/485 converters increases networking capability by extending the RS-232 transmission distance. Both converters have a superior industrial-grade design that includes DIN-rail mounting, terminal block wiring, an external terminal block for power, and optical isolation (TCC-100I and TCC-100I-T only). The TCC-100/100I Series converters are ideal solutions for converting RS-232 signals to RS-422/485 in critical industrial environments.
