TCC-100I-T

Moxa TCC-100I-T

TCC-100/100I Series
Industrial RS-232 to RS-422/485 converters with optional 2KV Isolation -40 to 85°C operating temperature

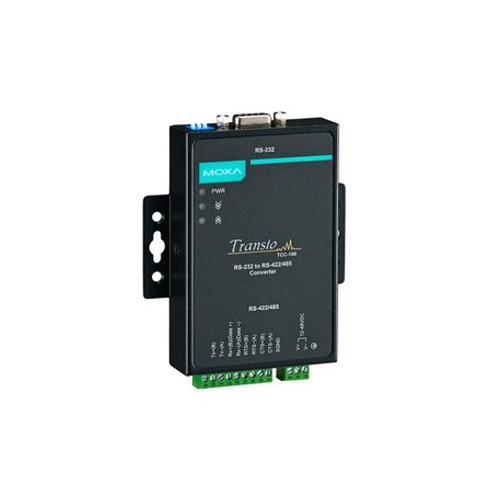

Image of TCC-100I-T
Free Ground Shipping on U.S. Orders over $99 $296.66 IN STOCK: 1 Units
Need it on next buniness day? Choose 1-Day Shipping Before 4:00 p.m. E.S.T at checkout.
ADD TO CART

Features and Benefits

moxa-tcc-100-100i-series-datasheet-v1.4.pdf
  • RS-232 to RS-422 conversion with RTS/CTS support
  • RS-232 to 2-wire or 4-wire RS-485 conversion
  • 2 kV isolation protection (TCC-100I)
  • Wall mounting and DIN-rail mounting
  • Plug-in terminal block for easy RS-422/485 wiring
  • LED indicators for power, Tx, Rx
  • Wide-temperature model available for -40 to 85°C environments
View More
Overview Specifications Accessories

Introduction

The TCC-100/100I Series of RS-232 to RS-422/485 converters increases networking capability by extending the RS-232 transmission distance. Both converters have a superior industrial-grade design that includes DIN-rail mounting, terminal block wiring, an external terminal block for power, and optical isolation (TCC-100I and TCC-100I-T only). The TCC-100/100I Series converters are ideal solutions for converting RS-232 signals to RS-422/485 in critical industrial environments.
