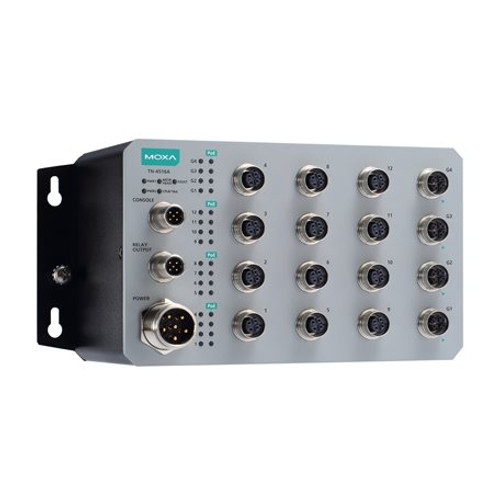

TN-4516A-12PoE-4GPoE-WV-CT-T

TN-4516A-12PoE-4GPoE-WV-CT-T

TN-4500A Series
L2 Managed Ethernet switch, 12 * 10/100BaseT(X) with 802.3at PoE+ and 4 * 10/100/1000 Base-T(X) with 802.3at PoE+ M12 connectors, power input 24 - 110 VDC, -40 to 75℃ operation temperature, conformal coating model
Free Ground Shipping on U.S. Orders over $99 $4,089.23 IN STOCK: 0 Units

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-tn-4500a-series-hw-rev-3.x-datasheet-v2.1.pdf
  • 2 to 4 Gigabit ports with bypass relay function on the bypass models
  • 2 Gigabit fiber ports with embedded multi-mode Q-ODC® interface on fiber models
  • Up to 4 Gigabit ports with PoE function
  • Up to 20 IEEE 802.3at/af compliant combo PoE and Ethernet ports
  • Supports regular and push-pull M12 connectors
  • Turbo Ring and Turbo Chain (recovery time If the port link speed is 1 Gigabit or higher, the recovery time is , and STP/RSTP/MSTP for network redundancy
  • Complies with all EN 50155 mandatory test items This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard. For a more detailed statement, click here: www.moxa.com/doc/specs/EN_50155_Compliance.pdf
  • Isolated power with 24 to 110 VDC power supply range
  • -40 to 70°C system operating temperature range
View More
Accessories Overview Specifications

Introduction

The ToughNet TN-4500A Series M12 managed Ethernet switchesare designed for railway applications, including rolling stock andwayside installations. The switches use M12 and other circular connectorsto ensure tight, robust connections, and guarantee reliable operationin industrial environments where vibration and shock are commonplace.The TN-4500A Series Ethernet switches provide 12 or 24 fast EthernetM12 ports with or without IEEE 802.3at/af compliant PoE functionality,and the Gigabit models have 4 Gigabit Ethernet interfaces with PoEand optional bypass relay functionality. In addition, the fiber modelsprovide 2 Gigabit fiber interface ports with an embedded 2 km multimodefiber transceiver. The PoE switches are classified as power sourceequipment (PSE).

The switches provide up to 30 watts of power per port, and can beused to power IEEE 802.3at/af compliant powered devices (PDs), suchas IP cameras, wireless access points, and IP phones. The 24 to 110VDC wide power input range and isolated dual power inputs not onlyallow you to use the same type of power source at different sitesaround the globe, but also increase the reliability of your communicationssystem. Furthermore, the -40 to 70°C operating temperature range ofthe switches ensures they can withstand deployment in harsh environments.TN-4500A Series Ethernet switches are compliant with the mandatorysections of EN 50155, covering operating temperature, power inputvoltage, surge, ESD, and vibration, as well as conformal coating andpower insulation, making the switches suitable for a variety of industrialapplications.

Additional Features and Benefits

  • Provides up to 30 watts per PoE port with a total powerbudget of 120 watts per switch

  • DHCP Option 82 for IP address assignment with differentpolicies

  • IGMP snooping and GMRP for filtering multicast traffic

  • Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease networkplanning

  • QoS (IEEE 802.1p/1Q and ToS/DiffServ) allows real-timetraffic classification and prioritization

  • IEEE 802.3ad, LACP for optimum bandwidth utilization

  • SNMPv1/v2c/v3 for different levels of network management

  • TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhancenetwork security

  • RMON for proactive and efficient network monitoring

  • Bandwidth management to prevent unpredictable networkstatus

  • Lock port allows access by only authorized MAC addresses

  • Port mirroring for online debugging

  • Automatic warning by exception through email and relayoutput

  • Line-swap fast recovery

  • LLDP for automatic topology discovery in network managementsoftware

  • Configurable by web browser, Telnet/serial console, CLI,and Windows utility

  • Loop protection to prevent network loops

  • Wall mounting installation capability
