UC-2112-T-LX

Moxa UC-2112-T-LX

UC-2100 Series
UC-2112-T-LX ; Arm-based palm-sized industrial computer with wide operating temperature, 1 GHz CPU, 2 serial ports and 2 LAN ports, and MOXA Industrial Linux pre-installed (QTC)

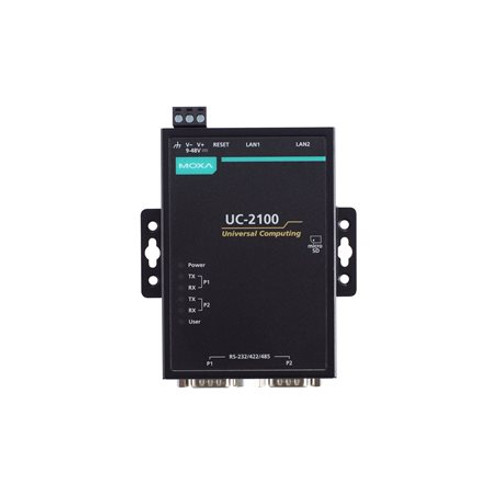

Image of UC-2112-T-LX
Free Ground Shipping on U.S. Orders over $99 $400.58 ON BACKORDER Estimated Availability: 02/24/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ON ORDER: 29 Units
ADD TO CART

Features and Benefits

moxa-uc-2100-series-datasheet-v3.0.pdf
  • Armv7 Cortex-A8 600-1000 MHz processor
  • Palm-sized form factor, 50 x 80 x 28 mm
  • Moxa Industrial Linux with 10-year superior long-term support
  • MXview support for centralized monitoring of devices and computing status
  • Unified APIs and push-based communication for retrieving data only when needed
  • 1 or 2 auto-sensing 10/100 Mbps Ethernet ports
  • Gigabit Ethernet supported (UC-2112)
  • Up to 2 software-selectable RS-232/422/485 ports supporting all signals
  • Mini PCIe socket for Wi-Fi/cellular module (UC-2104)
  • -40 to 75°C wide-temperature model available with hazardous locations certification
View More
Overview Specifications Accessories

Introduction

The UC-2100 Series computing platform is designed for embedded dataacquisition and processing applications. The computer comes with upto two software selectable RS-232/422/485 full-signal serial portsand single or dual Ethernet ports. This palm-sized series of Arm-basedcomputing platforms includes a variety of models for a wide rangeof interface requirements, such as single or dual serial and Ethernetports, Gigabit Ethernet, and wireless connections. These versatilecommunication capabilities allow users to efficiently adapt the UC‑2100for a variety of complex communications solutions.

The UC-2100 Series has a built-in Cortex-A8 Arm-basedprocessor that has been optimized for a variety of industrial solutions.With its flexible interface options, this tiny embedded computer isa reliable and secure gateway for data acquisition and processingat field sites and is a useful communication platform for many otherlarge-scale deployments. Models designed for wide temperature applicationsare available for use in extreme environments such as those foundin the oil and gas industry. Furthermore, all models use the MoxaIndustrial Linux platform, which provides optimized software featuresand long-term support.

Appearance

UC-2101

UC-2102

UC-2104

UC-2111

UC-2112
