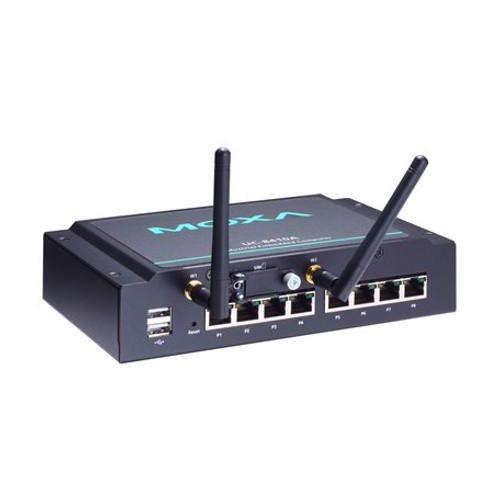

UC-8410A-T-LXUC-8410A Series Dual-core 1 GHz CPU, 1GB RAM, 8GB eMMC, 3 Giga-bit Ethernet ports, 8 serial ports, 4 DI, 4 DO, 1 USB port, 1 SD card slot, 1 mSATA socket, 1 mini-PCIe socket and -40 to 75°C operating temperature
FREE SHIPPING on orders over $99 $1,353.50
ADD TO CART
Features and Benefits
moxa-uc-8410a-series-datasheet-v1.4.pdf
  • Freescale LS1021A Cortex-A7 1 GHz dual-core processor
  • 1 GB DDR3 SDRAM
  • 8 RS-232/422/485 serial ports
  • 3 10/100/1000 Mbps Ethernet ports
  • Wireless-enabled with PCIe mini slot
  • 2 USB 2.0 hosts for mass storage devices
  • Wall-mounting installation
  • Robust, fanless design
  • -40 to 75°C wide-temperature model available
  • Moxa Industrial Linux with 10-year superior long term support
View More
Accessories Overview Specifications

Introduction

The UC-8410A Series embedded computers support a rich collection of communication interfaces, including 8 RS-232/422/485 serial ports, 3 Ethernet ports, 1 PCIe mini slot for a wireless module, 4 digital input channels, 4 digital output channels, 1 mSATA slot, and 2 USB 2.0 hosts.

The UC-8410A computer uses the Freescale Cortex-A7 dual-core 1 GHz RISC CPU. This powerful computing engine supports several useful communications functions, without generating too much heat. The built-in 8 GB eMMC card and 1 GB DDR3 SDRAM give you enough memory to run your application software, and the mSATA slot provides the flexibility of adding additional data storage.

The UC-8410A computers come with a variety of communication interfaces, including serial ports, Ethernet ports, wireless communication slot, and digital input/output channels, making them ideal as communication platforms for industrial applications that require network and device communications.

The UC-8410A Series comes with Linux Debian 8 preinstalled to provide an open software operating system for software program development. This makes the UC-8410A computer an optimal solution for use with industrial applications, but at minimal cost and effort. In addition to the standard model of the UC-8410A, a -40 to 75°C wide-temperature model is available for harsh industrial environments.

Appearance

Front View

Rear View

Left View
