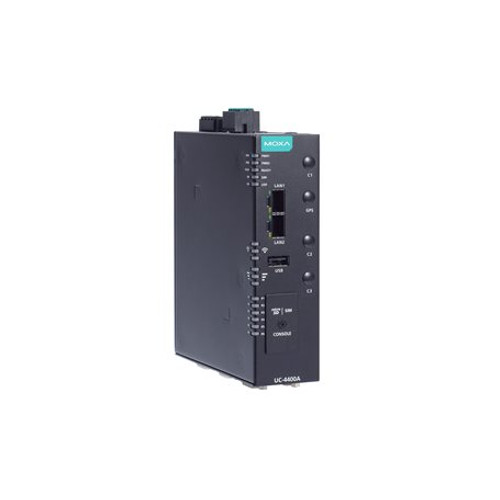

UC-4430A-T

UC-4400A Series

UC-4430A-T ; Arm Cortex-A53 quad-core 1.6 GHz Industrial Computer with 2 serial,2 LAN,1 CAN, LTE/WiFi expansion slot

Free Ground Shipping on U.S. Orders over $99 $667.00 ON BACKORDER Estimated Availability: 05/21/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART

Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-uc-4400a-series-datasheet-v1.0.pdf

Arm Cortex-A53 quad-core 1.6 GHz processor
Integrated 5G Sub-6GHz NR module with dual SIM and AT&T approval
2 auto-sensing 10/100/1000 Mbps Ethernet ports
CANbus and serial port with 2-kV isolation protection
Moxa Industrial Linux with 10-year superior long-term support
microSD socket for storage expansion
Wi-Fi 6E and 4G LTE Cat.4 support with optional accessory
Ready for ISA/IEC 62443-4-2 SL2 certification
CE/FCC/UL certifications
-40 to 75°C operating temperature range (-40 to 70°C with cellular module enabled)

Overview Specifications Accessories

Introduction

The UC-4400A computing platform is designed for embeddeddata-acquisition applications. The computer comes with up to fourRS-232/422/485 serial ports, dual 10/100/1000 Mbps Ethernet ports,and up to 2 CAN ports as well as a Mini PCIe and M.2 E socket to supportLTE Cat. 4 and Wi-Fi 6E modules. These versatile capabilities letusers efficiently adapt the UC-4400A to a variety of complex communicationssolutions.

The UC-4400Ais built around a Arm Cortex-A53 quad-core processor that has beenoptimized for use in energy monitoring systems, but is widely applicableto a variety of industrial solutions. With flexible interfacing options,this tiny, embedded computer is a reliable and secure gateway fordata acquisition and data processing at field sites as well as a usefulcommunications platform for many other large-scale deployments.

Wide temperature cellular-enabledmodels are available for extended-temperature applications. All unitsare thoroughly tested in a testing chamber, guaranteeing that thecellular-enabled computing platforms are suitable for wide-temperatureapplications.
