UC-8220-T-LX

Moxa UC-8220-T-LX

UC-8200 Series
Arm-based wireless-enabled DIN-rail industrial computer with wide operating temperature, dual core 1GHz CPU, 2GB RAM, 2 serial ports, 2 Ethernet ports, 2 mPCIe slot, and Linux pre-installed

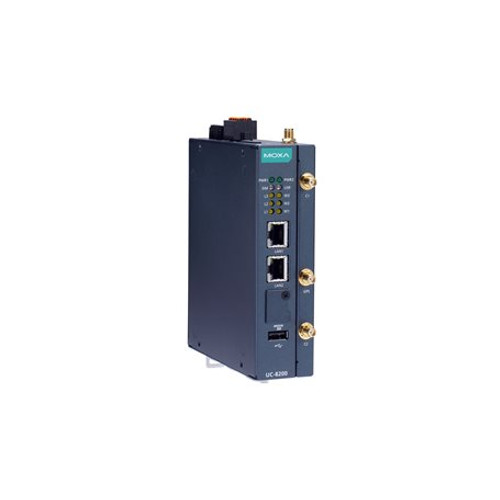

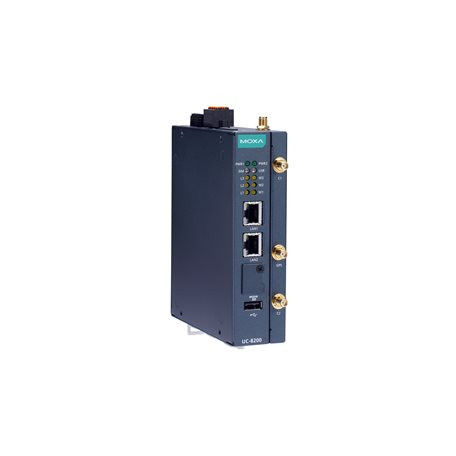

Image of UC-8220-T-LX
Free Ground Shipping on U.S. Orders over $99 $689.06 IN STOCK: 0 Units

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-uc-8200-series-datasheet-v3.1.pdf
  • Armv7 Cortex-A7 dual-core 1 GHz
  • ISASecure IEC 62443-4-2 Security Level 2 certified with Moxa Industrial Linux 3 Secure
  • Moxa Industrial Linux with 10-year superior long-term support
  • LTE-ready computer with Verizon/AT&T certification and industrial-grade CE/FCC/UL certifications
  • Dual-SIM slots
  • 2 auto-sensing 10/100/1000 Mbps Ethernet ports
  • Integrated LTE Cat. 4 module with US/EU/APAC band support
  • 1 CAN port supports CAN 2.0A/B
  • microSD socket for storage expansion
  • -40 to 85°C wide temperature range and -40 to 70°C with LTE enabled
View More
Overview Specifications Accessories

Introduction

The UC-8200 computing platform is designed forembedded data acquisition applications. The computer comes with dualRS-232/422/485 serial ports, dual 10/100/1000 Mbps Ethernet ports,and one CAN port as well as dual Mini PCIe socket to support Wi-Fi/cellularmodules. These versatile capabilities let users efficiently adaptthe UC-8200 to a variety of complex communications solutions.

The UC-8200 is builtaround a Cortex-A7 dual core processor that has been optimized foruse in energy monitoring systems, but is widely applicable to a varietyof industrial solutions. With flexible interfacing options, this tinyembedded computer is a reliable and secure gateway for data acquisitionand processing at field sites as well as a useful communications platformfor many other large-scale deployments.

Wide temperature LTE-enabled models are availablefor extended temperature applications. All units are thoroughly testedin a testing chamber, guaranteeing that the LTE-enabled computingplatforms are suitable for wide-temperature applications.

Appearance

UC-8210

UC-8220
