UC-8220-T-LX-US-S IIoT gateway running Debian 9 Linux, dual core 1 GHz ARMv7 Cortex-A7, 2 GB RAM, 8 GB eMMC storage, built-in Cat 4 LTE, TPM 2.0, -40 to 70°C operation ( QTC )
FREE SHIPPING on orders over $99 $839.00
ADD TO CART
Features and Benefits
  • Armv7 Cortex-A7 dual-core 1 GHz
  • Moxa Industrial Linux with 10-year superior long-term support
  • LTE-ready computer with Verizon/AT&T certification and industrial-grade CE/FCC/UL certifications
  • Dual-SIM slots
  • 2 auto-sensing 10/100/1000 Mbps Ethernet ports
  • Integrated LTE Cat. 4 module with US/EU/APAC band support
  • 1 CAN port supports CAN 2.0A/B
  • microSD socket for storage expansion
  • Programmable LEDs and a programmable button for easy installation and maintenance
  • -40 to 85°C wide temperature range and -40 to 70°C with LTE enabled
View More
Accessories Overview Specifications

Introduction

The UC-8200 computing platform is designed for embedded data acquisition applications. The computer comes with dual RS-232/422/485 serial ports, dual 10/100/1000 Mbps Ethernet ports, and one CAN port as well as dual Mini PCIe socket to support Wi-Fi/cellular modules. These versatile capabilities let users efficiently adapt the UC-8200 to a variety of complex communications solutions.

The UC-8200 is built around a Cortex-A7 dual core processor that has been optimized for use in energy monitoring systems, but is widely applicable to a variety of industrial solutions. With flexible interfacing options, this tiny embedded computer is a reliable and secure gateway for data acquisition and processing at field sites as well as a useful communications platform for many other large-scale deployments.

Wide temperature LTE-enabled models are available for extended temperature applications. All units are thoroughly tested in a testing chamber, guaranteeing that the LTE-enabled computing platforms are suitable for wide-temperature applications.

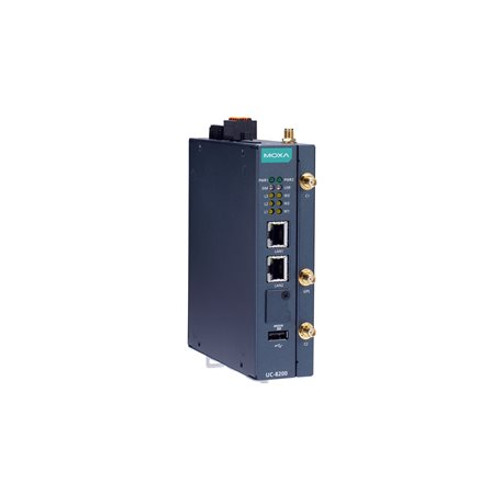

Appearance

UC-8210

UC-8220
