Moxa UPort 200A Series

Introduction

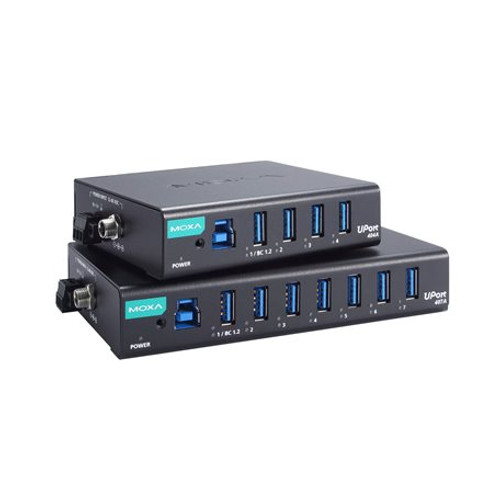

The UPort® 200A Series general-purpose USB 3.2 hubs can expand anUSB port into 4 or 7 USB ports. The hubs are designed to provide trueUSB 3.2 Gen 1 SuperSpeed 5 Gbps data transmission rates through eachport. The hubs are fully compliant with the USB plug-and-play specand provide full 900 mA power per port, ensuring that your USB devicesfunction properly. Externally powered USB hubs are the only way toguarantee the broadest compatibility with USB devices.

BC 1.2 Compatibility

The UPort® 200A Series hubs has BC 1.2 compatible onport 1, which would provide 1.5 A charging power to the mobile device/powerbank that also supports BC 1.2. The UPort® 200A Series supports CDP,DCD and SCD type.

ESD Level 4 Protection

Electrostatic discharge (ESD) could be as severe as havingmore than 1,000 volts of ESD with a high rise-time (dv/dt) breakingthrough the junction layer of protective devices. In order to avoidserious damage, Moxa’s UPort® 200A Series USB hubs provide ESD Level4 (contact 8 kV, air 15 kV) protection, which increases the qualityand value of the user’s end product.
