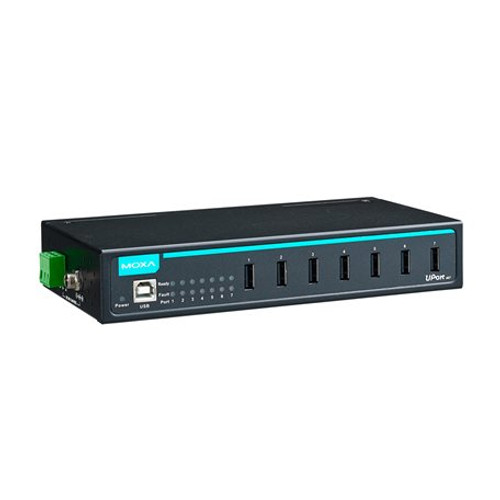

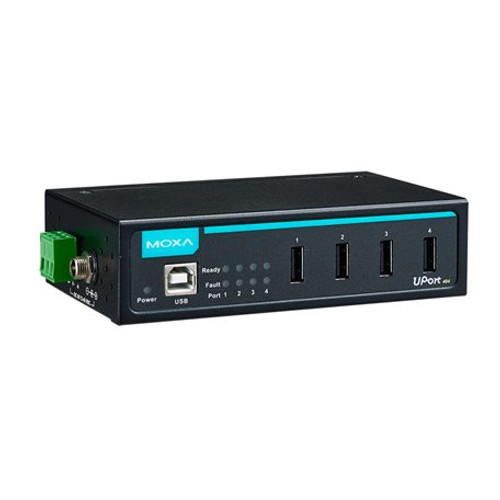

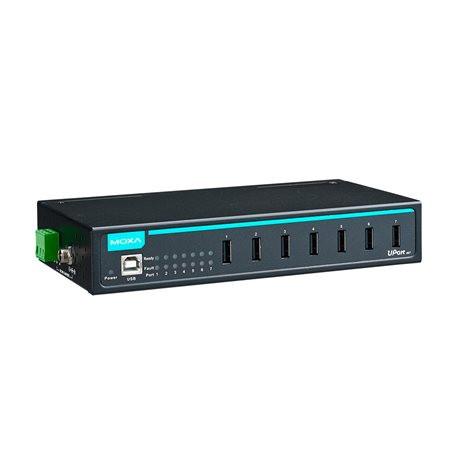

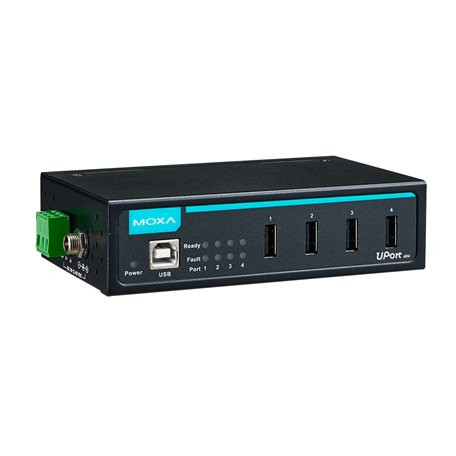

UPort 404/407 Series 4 and 7-port industrial-grade USB hubs
Features and Benefits
moxa-uport-404-407-series-datasheet-v2.2.pdf
  • Hi-Speed USB 2.0 for up to 480 Mbps USB data transmission rates

  • USB-IF certification

  • Dual power inputs (power jack and terminal block)

  • 15 kV ESD Level 4 protection for all USB ports

  • Rugged metal housing

  • DIN-rail and wall-mountable

  • Comprehensive diagnostic LEDs

  • Chooses bus power or external power (UPort 404)

View More
Product ID Product Description Availability Price Qty
UPort 404/407 Series $0
ADD TO CART
Accessories Overview Specifications

Introduction

The UPort® 404 and UPort® 407 are industrial-grade USB 2.0 hubs that expand 1 USB port into 4 and 7 USB ports, respectively. The hubs are designed to provide true USB 2.0 Hi-Speed 480 Mbps data transmission rates through each port, even for heavy-load applications. The UPort® 404/407 have received USB-IF Hi-Speed certification, which is an indication that both products are reliable, high-quality USB 2.0 hubs. In addition, the hubs are fully compliant with the USB plug-and-play spec and provide a full 500 mA of power per port, ensuring that your USB devices function properly. The UPort® 404 and UPort® 407 hubs’ support 12-40 VDC power, which makes them ideal for mobile applications. Externally powered USB hubs are the only way to guarantee the broadest compatibility with USB devices.

USB-IF Certification

The UPort® 404 and UPort® 407 USB 2.0 industrial-grade USB hubs have received the USB-IF (USB Implementers Forum) certification. USB-IF verifies a number of strict electrical requirements for the high-speed USB operation of USB hubs designed to the USB 2.0 specification. This means that the UPort® 404/407 support Hi-Speed USB 2.0 for up to 480 Mbps USB transmission, which is fully compliant with interoperability requirements, has enough power for devices to function, and facilitates a smooth transition back to high-speed operation from the suspended state.

ESD Level 4 Protection

Electrostatic discharge (ESD) could be as severe as having more than 1,000 volts of ESD with a high rise-time (dv/dt) breaking through the junction layer of protective devices. In order to avoid serious damage, Moxa’s UPort® 404/407 USB hubs provide ESD Level 4 (contact 8 kV, air 15 kV) protection, which increases the quality and value of the user’s end product.
