V2201-E1-T-LX

Moxa V2201-E1-T-LX

V2201 Series
(Pre-Configured Model) Intel Atom E3815, HDMI, 2 LANs, 2 serial ports, 4 DIs, 4 DOs, 1 USB 3.0 port, 2 USB 2.0 ports, 1 SD socket, 1 uSIM socket, 2 mini-PCIe sockets, -40 to 85°C, Linux Debian 7 pre-installed

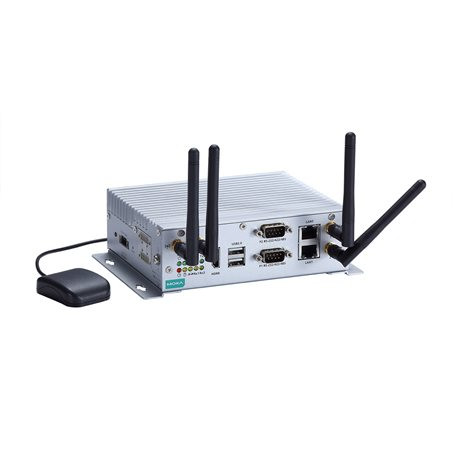

Image of V2201-E1-T-LX
Free Ground Shipping on U.S. Orders over $99 $1,247.14 ON BACKORDER Estimated Availability: 02/23/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

ADD TO CART
Call Us 1-888-908-3330 for Availability or Possible Alternatives

Features and Benefits

moxa-v2201-series-datasheet-v2.9.pdf
  • Intel Atom® E3800 Series processor with three performance options
  • Dual Mini PCIe sockets for wireless modules
  • -40 to 85°C wide operating temperature
  • Variety of interfaces: 2 serial ports, 2 Ethernet LAN ports, 4 DIs, 4 DOs, SD, USB, HDMI, wireless
  • EN 61000-6-2 and EN 61000-6-4 certification Passed with AC/DC adapter. and meets the EMC standard for heavy industry
  • Up to 5 Grms anti-vibration protection and 100 g/11 ms anti-shock protection
View More
Overview Specifications Accessories

Introduction

The V2201 Series ultra-compact x86 embedded computeris based on the Intel® Atom™ E3800 Series processor, features themost reliable I/O design to maximize connectivity, and supports dualwireless modules, making it suitable for a diverse range of communicationapplications. Wireless modules must be purchased separately. The computer’s thermal design ensures reliable system operationin temperatures ranging from -40 to 85°C (-40 to 70°C with a specialpurpose Moxa wireless module installed).

Applications

  • Remote Terminal Unit (RTU)

  • Data acquisition

  • M2M communication (smart gateway)

  • Digital signage

  • Factory automation

  • In-vehicle monitor/data logger (transportation)

  • Programmable router

  • Energy usage optimization

  • Predictive maintenance

  • Asset management

Appearance

Left-side View

Right-side View

Front View
